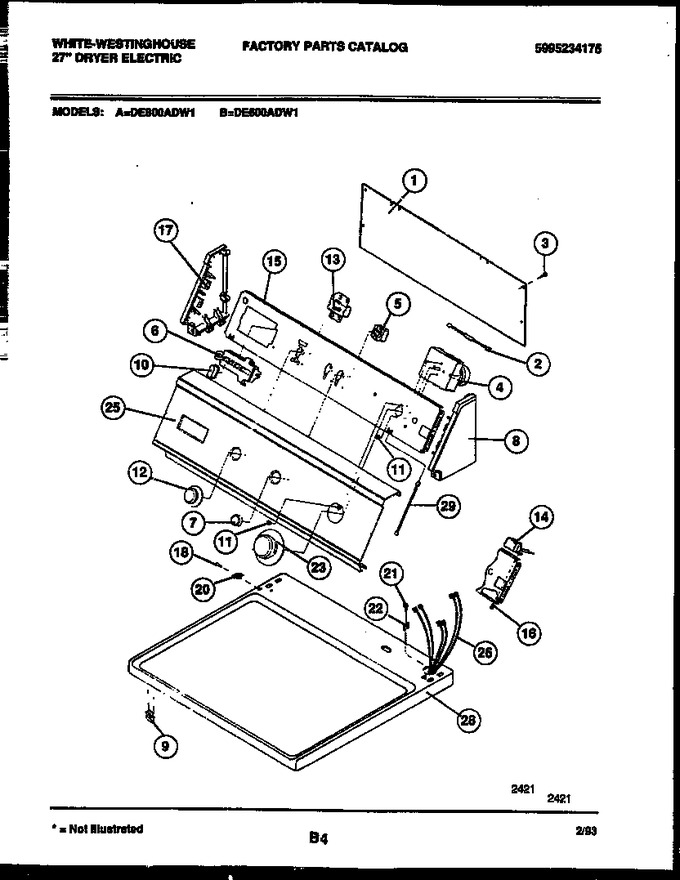

02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205898 | Backsheet |
|
- | |||||
| 2 | 3205243 | Resistor |
|
- | |||||
| 3 | 131052100 | Screw (4) |
|
- | |||||
| 4 | 131062600 | Timer |
|
- | |||||
| 5 | 131048000 | Switch, Start |
|
- | |||||
| 6 | 131048200 | Switch-temperature |
|
$ 193.03 | |||||
| 7 | 131032900 | Pushbutton |
|
- | |||||
| 8 | 5303291352 | End Cap-rh |
|
$ 56.49 | |||||
| 9 | 3205821 | Spring Catch |
|
Immediately | $ 35.44 | ||||
| 10 | 131033300 | Pushbutton (4) |
|
- | |||||
| 11 | 218359202 | Screw (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 12 | 131118600 | Knob-rotary |
|
- | |||||
| 13 | 131048300 | Buzzer |
|
- | |||||
| 15 | 5303291355 | Bracket-controls |
|
- | |||||
| 17 | 5303291344 | End Cap-lh |
|
$ 59.59 | |||||
| 18 | 5303289526 | Screw |
|
- | |||||
| 20 | 5300503065 | Clip |
|
$ 6.09 | |||||
| 21 | 08001689 | Screw |
|
- | |||||
| 22 | 5379171000 | Terminal |
|
- | |||||
| 23 | 131118900 | Knob-timer |
|
- | |||||
| 25 | 131125000 | Panel-control |
|
- | |||||
| 26 | 131005000 | Harness |
|
- | |||||
| 28 | 5303273262 | Panel Top-almd |
|
- | |||||
| 29 | 131062202 | Jumper Wire |
|
- |
