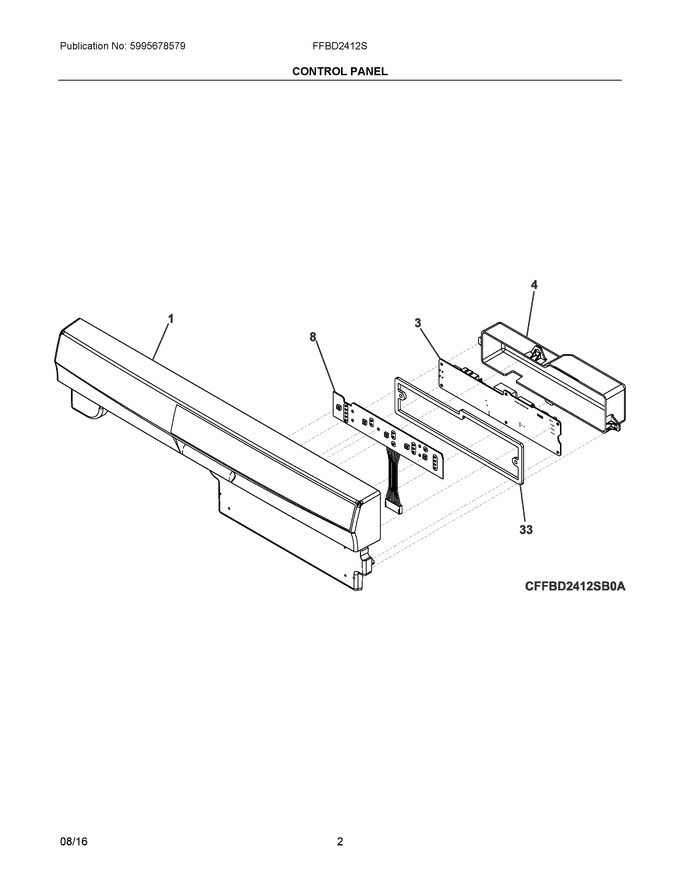

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507359 | Console Assembly, W/overlay, Black |
|
$ 110.80 | |||||
| 3 | 5304529215 | Board, Control (Replaces: 5304506905) |
|
$ 166.28 | |||||
| 4 | 5304506895 | Cover, Control |
|
$ 27.55 | |||||
| 8 | 5304506923 | Control Assembly, User Interface |
|
Immediately | $ 101.21 | ||||
| 33 | 5304506894 | Gasket, Control Cover |
|
$ 14.59 | |||||
| NI | 5304504853 | Harness, Wiring, Main |
|
Immediately | $ 126.70 | ||||
| NI | 808612222 | Energy Guide |
|
- | |||||
| NI | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| NI | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 |
