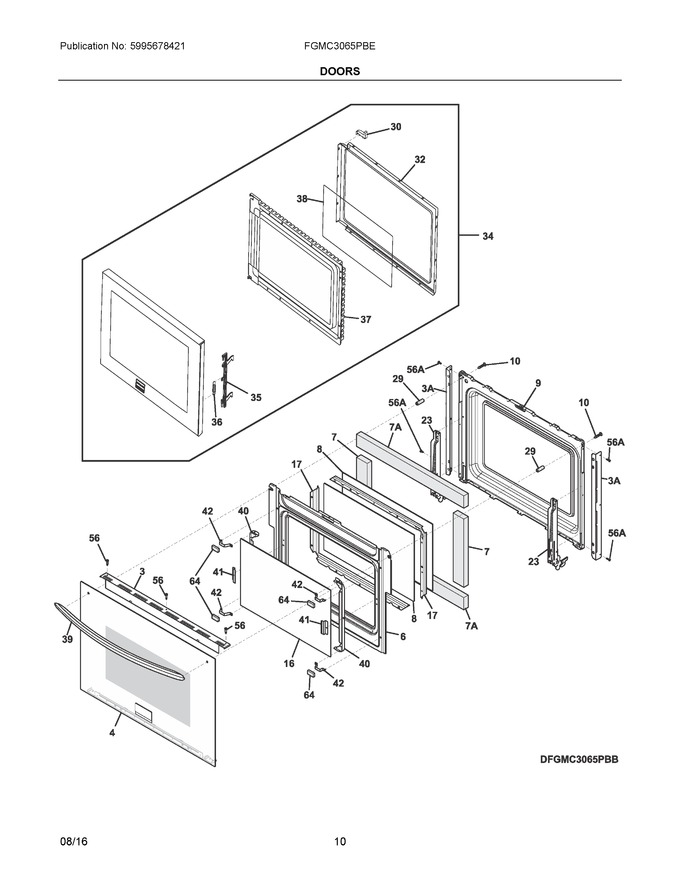

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	139023301		Trim, Oven Door, Black, Upper				$ 54.60
4	808950008		Door Assembly, Outer, Black, W/trim & Badge		Appelez-nous	-
6	139006905		Baffle, Door				$ 121.34
7	318372017		Insulation, Door				$ 16.30
8	5304503232		Glass, Oven Door, Inner   (Replaces: 316117504)				$ 116.95
9	139000405		Liner, Oven Door				$ 115.27
10	240442708		Screw, 10-32 X 3/4, (4)   (Replaces: 5304400794)				$ 8.34
16	316446401		Glass, Oven Door, Airwash   (Replaces: 316446400)			Immediately	$ 125.13
17	318264731		Spacer, Glass, (2)				$ 72.05
23	316575915		Hinge, Oven Door, Lime   (Replaces: 316575914)				$ 166.09
29	139023400		Spacer, Door Handle, (2)				$ 20.48
30	5304442145		Door Stop		Appelez-nous	-
32	5304440861		Choke Cover, Inner Door				$ 73.02
34	5304474854		Door Assembly, Complete, Black, W/badge		Appelez-nous	-
35	5304441893		Latch, Door			Immediately	$ 48.91
36	5304440316		Spring, Door Latch			Immediately	$ 61.00
37	5304440857		Panel, Inner Door, Black				$ 192.29
38	5304440860		Seal, Door, Film				$ 63.09
39	318927401		Handle, Door/drawer, Black				$ 189.11
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)   (Replaces: 318382301)				$ 50.81
56	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
64	318165800		Spacer, Glass, Foam				$ 17.72
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
56A	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
7A	318372016		Insulation, Door				$ 17.72
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
