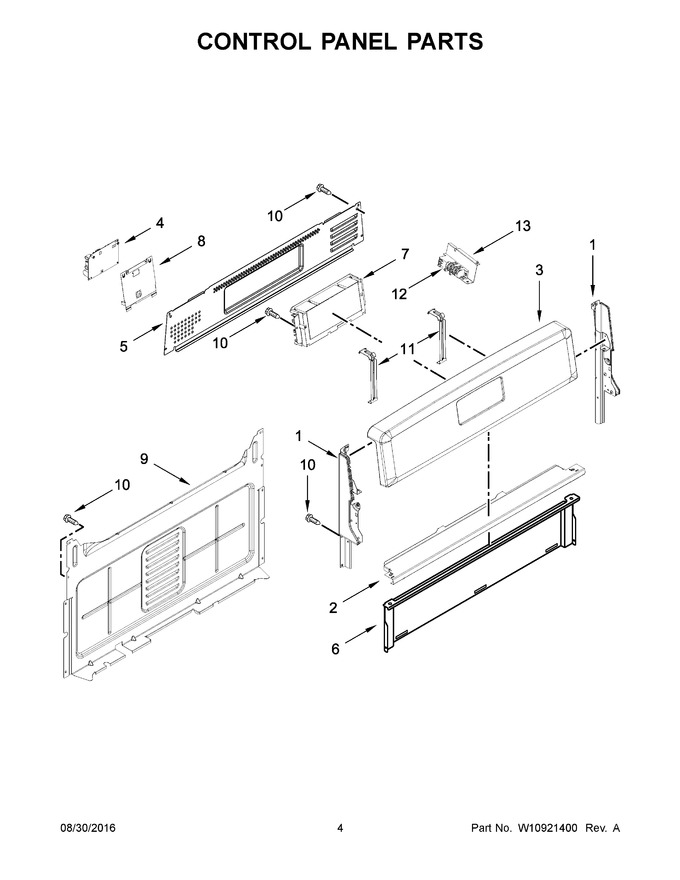

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W10184437)				$ 131.85
2	W10516123		Bracket, Console Mounting		Appelez-nous	-
3	W11234434		Console (black)   (Replaces: W10370100)				$ 295.98
4	WPW10511278		Module, Spark Dsi   (Replaces: W10511278)			Immediately	$ 215.63
5	W10198745		Cover, Upper				$ 110.48
6	W10192841		Shield, Heat				$ 91.45
7	WPW10348712		Control, Lcc195 (black)   (Replaces: W10348712)				$ 421.74
8	W10762981		Bracket, Mounting				$ 65.50
9	W10184251		Cover, Back		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
11	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 72.69
12	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 161.15
13	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
1A	W11219665		Endcap (black (right))   (Replaces: W10184438)				$ 36.40
1B	W11219365		Endcap (white (left))   (Replaces: W10184433)				$ 36.39
1C	W11219370		Endcap (white (right))   (Replaces: W10184434)				$ 52.14
3A	W11234436		Console (white)   (Replaces: W10370102)				$ 295.98
3B	W10339408		Console (stainless)				$ 122.16
7A	WPW10348713		Control, Lcc195 (white)   (Replaces: W10348713)			Immediately	$ 383.11
7B	WPW10349742		Control, Lcc195 (chromium (stainless And Black Ice Models))   (Replaces: W10349742)				$ 438.03
7C	WPW10475745		Control, Lcc195 (chromium (white Ice))   (Replaces: W10475745)				$ 384.47
