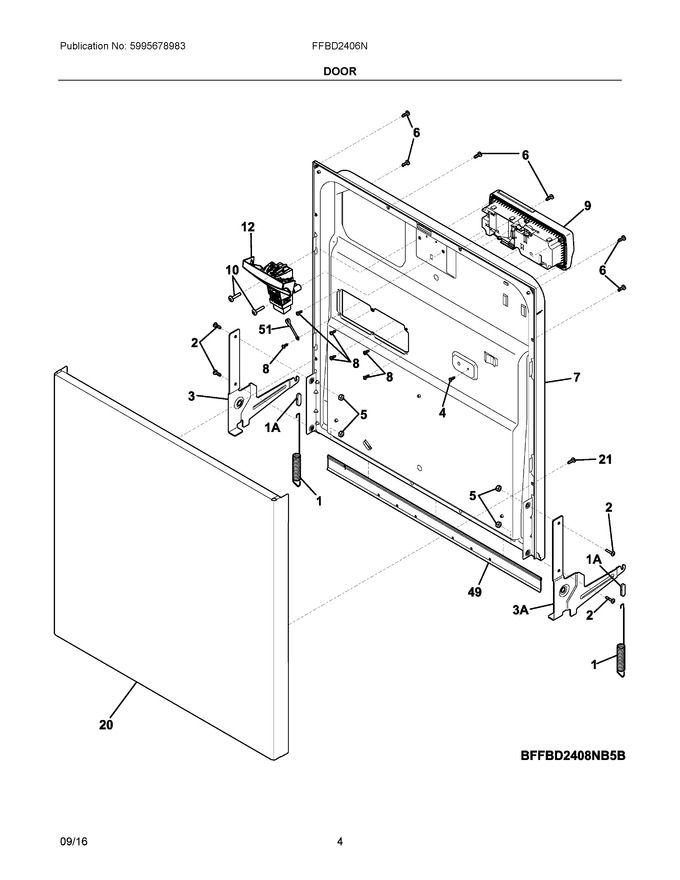

01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154430501 | Spring, Door, (2) |
|
Immediately | $ 36.31 | ||||
| 2 | 154093301 | Screw, Arm Assy, (4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5304513274 | Arm Assy, Lh (Replaces: 154691201) |
|
Immediately | $ 66.56 | ||||
| 4 | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| 5 | 154079601 | Nut, Arm Assy, And Handle Mtg. |
|
$ 0.41 | |||||
| 6 | 154783101 | Screw, Plt, 8-10 |
|
Immediately | $ 7.09 | ||||
| 7 | 5304502917 | Liner, Door Assembly, White |
|
$ 168.48 | |||||
| 8 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| 9 | 5304506521 | Dispenser, Det/rinse Aid, W/level Ind. |
|
Immediately | $ 99.05 | ||||
| 10 | 154103702 | Screw, Latch Mtg, (2) |
|
$ 13.46 | |||||
| 12 | 5304517279 | Latch Assembly, White (Replaces: 5304500347) |
|
Immediately | $ 70.24 | ||||
| 20 | 154829001 | Door, Outer, White, W/barrier |
|
Immediately | $ 142.46 | ||||
| 21 | 154754701 | Screw, Truss Hd, 8-18 Type Ab |
|
$ 3.55 | |||||
| 49 | 5304500204 | Gasket, Door, Bottom |
|
Immediately | $ 29.79 | ||||
| 51 | 154320301 | Clamp, Drip Loop, Wire |
|
$ 62.69 | |||||
| 1A | 154325201 | Linkage, Door Spring, (2) |
|
Immediately | $ 27.27 | ||||
| 3A | 5304513274 | Arm Assy, Rh (Replaces: 154691101) |
|
Immediately | $ 66.56 | ||||
| NI | 154686401 | Bearing, Hinge Pin |
|
$ 10.63 | |||||
| NI | 154647101 | Hinge Pin, Arm Assy |
|
$ 14.18 | |||||
| NIA | 5304525214 | Shield, Dispenser Assy (Replaces: 154719301) |
|
Immediately | $ 10.13 |
