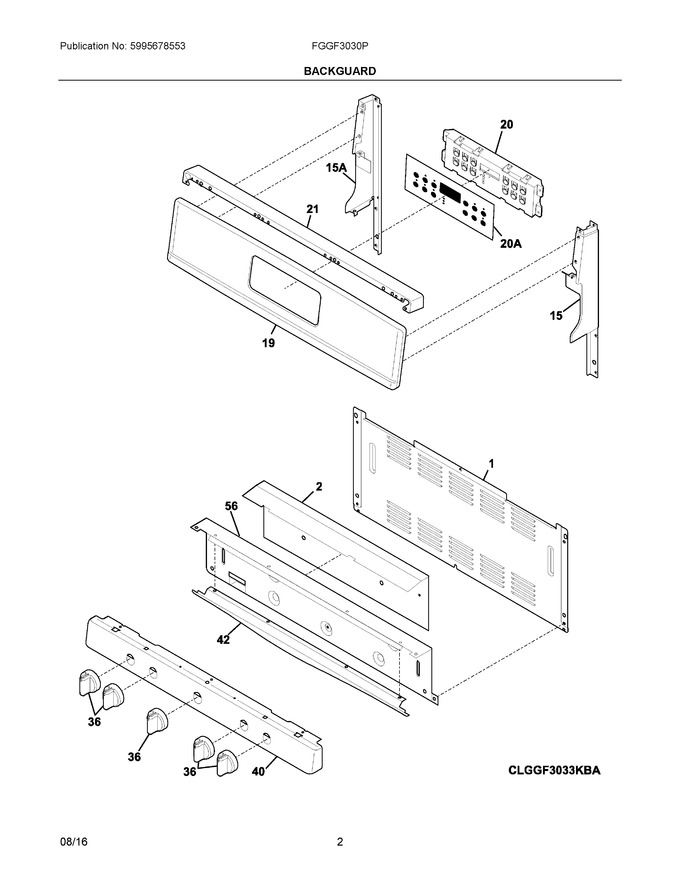

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield, Rear Wall				$ 70.04
2	316497601		Shield, Backguard, Inner				$ 49.40
15	316546702		Cap, Backguard, Black, Rh End				$ 52.55
19	316572405		Panel, Backguard, Black				$ 169.26
20	5304510580		Clock/timer, Electronic, Es330   (Replaces: 316557201)				$ 361.85
21	316546605		Cap, Backguard, Black, Top   (Replaces: 316546601)				$ 66.91
36	316564511		Knob, Top Valve, Black, (4)				$ 35.07
40	316290441		Panel-manifold, Black		Appelez-nous	-
42	316416204		Trim, Extrusion, Black   (Replaces: 316416200)				$ 43.99
56	316230705		Shield, Backguard, Inner		Appelez-nous	-
15A	316546703		Cap, Backguard, Black, Lh End				$ 64.47
20A	316419339		Overlay, Clock, Black, Es330				$ 48.20
NI	316905069		Service Tech Sheet, W/wiring Diagrm		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
