View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:

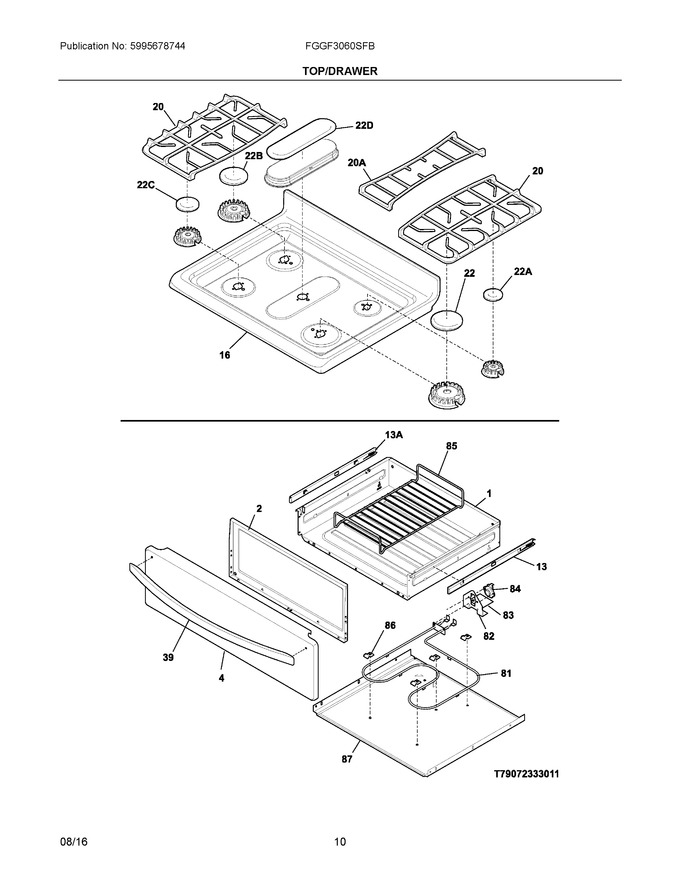

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408905 | Drawer, Warmer (Replaces: 316408901) |
|
$ 143.45 | |||||
| 2 | 5304527988 | Liner, Black, Drawer (Replaces: 316403203) |
|
Immediately | $ 26.54 | ||||
| 4 | 5304494412 | Panel, Drwaer Front, Stainless |
|
$ 98.53 | |||||
| 13 | 316415000 | Glide, Warmer, Inner Rh |
|
$ 58.82 | |||||
| 16 | 316605004 | Maintop, Stainless |
|
- | |||||
| 20 | 807327101 | Grate, Burner, Black, Side, (2) |
|
$ 243.81 | |||||
| 22 | 5304508468 | Cap, 17k Burner, Black (Replaces: 316262104) |
|
$ 49.45 | |||||
| 34 | 316499902 | Griddle, Oval |
|
$ 256.33 | |||||
| 39 | 316554010 | Handle, Door/drawer, Stainless (Replaces: 316554008) |
|
Immediately | $ 168.44 | ||||
| 81 | 316437300 | Element, Warmer Drawer |
|
$ 106.17 | |||||
| 82 | 316093200 | Bracket, Element Mtg |
|
- | |||||
| 83 | 316093300 | Shield, Terminal, Warmer Drawer |
|
- | |||||
| 84 | 316093502 | Thermo Disc, Warmer Drawer |
|
$ 51.03 | |||||
| 85 | 807328301 | Rack, Warmer Drawer |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip, Hold Down, (3) |
|
$ 9.93 | |||||
| 87 | 316091900 | Base, Warmer Drawer |
|
$ 221.55 | |||||
| 13A | 316415001 | Glide, Warmer, Inner Lh |
|
Immediately | $ 58.82 | ||||
| 20A | 807412601 | Grate, Burner, Black, Center |
|
$ 240.26 | |||||
| 22A | 5304508441 | Cap, 5k Burner, Matte, Black (Replaces: 316261704) |
|
Immediately | $ 35.04 | ||||
| 22B | 5304508443 | Cap, 14k Burner, Matte, Black (Replaces: 316262004) |
|
Immediately | $ 46.01 | ||||
| 22C | 5304508442 | Cap, 9.5k Burner, Matte, Black (Replaces: 316261804) |
|
Immediately | $ 36.55 | ||||
| 22D | 316559604 | Cap, 9.5k Burner, Black, Oval |
|
$ 72.30 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316119700 | Cleaner, Grate |
|
$ 11.97 | |||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black |
|
$ 13.46 | |||||
| NI | 5304475129 | Foot Kit, Grate, Rubber (Replaces: 316267400) |
|
$ 93.74 | |||||
| NI | 5303288572 | Screw-handle Mtg |
|
- | |||||
| NI | 316136900 | Cleaner, Stainless Steel |
|
$ 35.49 | |||||
| NI | 5304494425 | Harness, Ignitor (Replaces: 316580602) |
|
$ 86.45 | |||||
| NI | 316525629 | Harness, Warm Base |
|
- | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 |
