01 - Cover Sheet
02 - Cooktop Parts

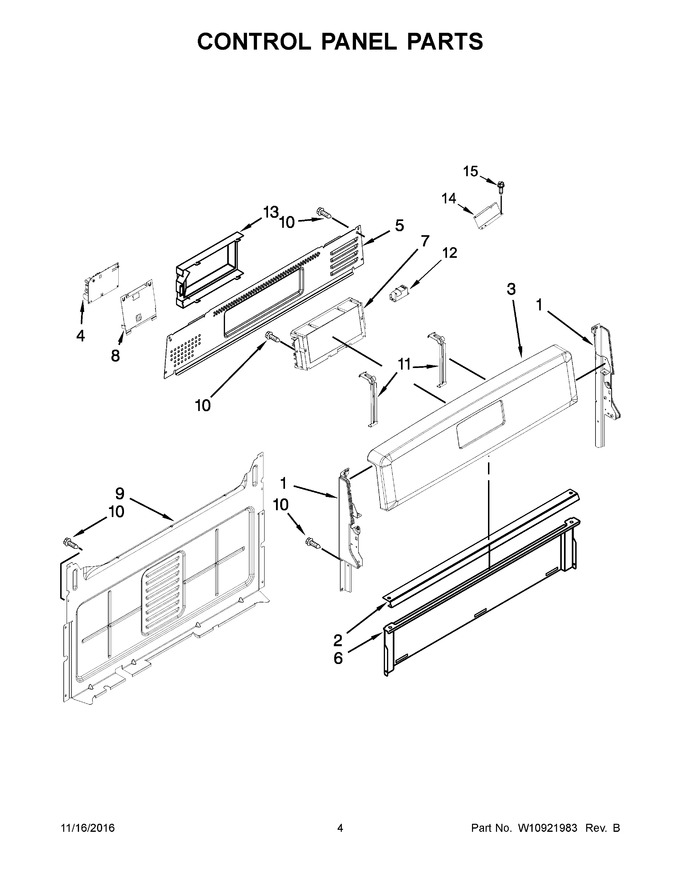

03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | W10655864 | Console (stainless) |
|
$ 135.26 | |||||
| 4 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 215.63 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 110.48 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 91.45 | |||||
| 7 | W11028215 | Control, Lcc195 (stainless) (Replaces: W10888769) |
|
$ 404.83 | |||||
| 8 | W10516463 | Bracket, Dsi |
|
- | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 11 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 72.69 | ||||
| 12 | WPW10110491 | Module, Spark (Replaces: W10110488) |
|
Immediately | $ 276.35 | ||||
| 13 | W10158780 | Cover, Rear Fan |
|
$ 101.56 | |||||
| 14 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 15 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
$ 36.40 |
