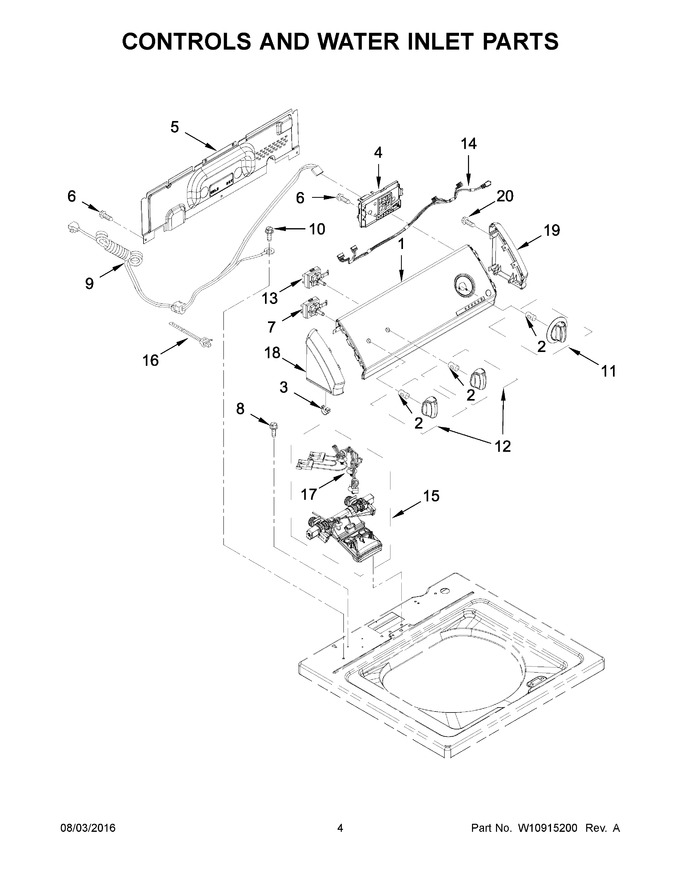

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10740635		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 17.40
4	W11116519		Control Unit Assembly, Machine & Motor   (Replaces: W10864958)		Appelez-nous	-
5	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
6	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
7	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 135.86
8	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
9	W10877409		Cord, Power   (Replaces: W10737739)				$ 130.00
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
11	W10317457		Assembly, Timer Knob (grey)		Appelez-nous	-
12	W10317458		Assembly, Control Knob (grey)		Appelez-nous	-
13	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 158.12
14	W10786099		Harness, Upper		Appelez-nous	-
15	W11210463		Inlet Assembly, Water   (Replaces: W10701461)			Immediately	$ 159.92
16	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 8.30
17	W10701401		Harness, Valve				$ 178.13
18	WP8559502		End Cap (left) (white)   (Replaces: 8559502)				$ 72.99
19	WP8559501		End Cap (right) (white)   (Replaces: 8559501)				$ 72.77
20	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25

    View Diagram in Separate Window       Print Part List
