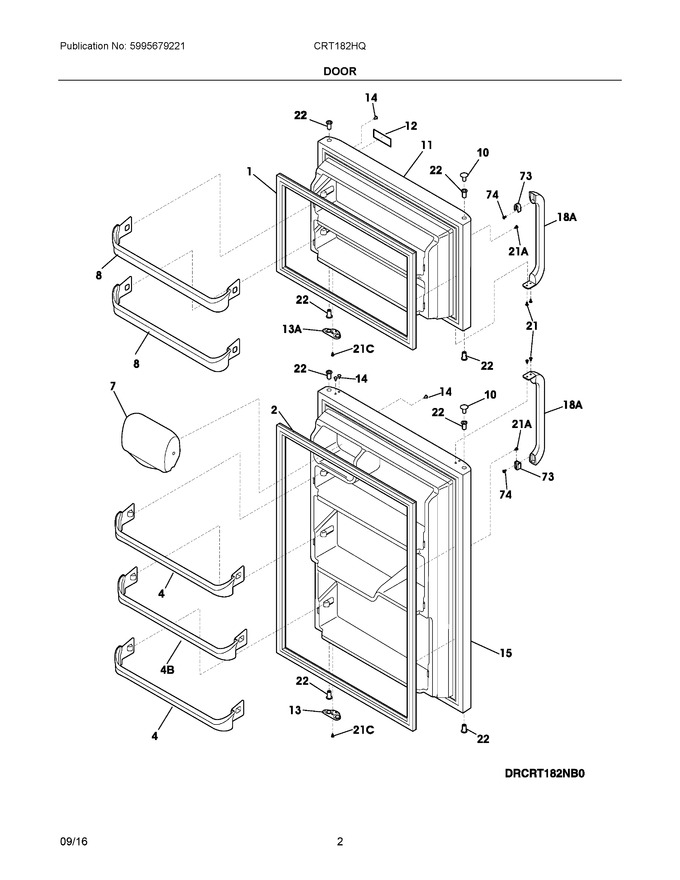

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193209 | Gasket-frzr Door, Black, Magnetic |
|
Immediately | $ 197.62 | ||||
| 2 | 242193212 | Gasket-refr Door, Black, Magnetic |
|
Immediately | $ 191.86 | ||||
| 4 | 240534901 | Rack-door |
|
Immediately | $ 47.03 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 36.41 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 49.62 | ||||
| 10 | 240381303 | Plug-button, Black, Hinge Brg Hole |
|
$ 69.77 | |||||
| 11 | 240410203 | Door-frzr, Black, Complete Assy |
|
$ 469.13 | |||||
| 12 | 242115801 | Nameplate, Crosley |
|
- | |||||
| 13 | 240312422 | Door Stop, Black, Refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 14 | 240494003 | Plug-button, Black |
|
$ 18.20 | |||||
| 15 | 240450413 | Door-refr, Black, Complete Assy (Replaces: 240410305) |
|
$ 513.51 | |||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge, Black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 73 | 218396701 | Block-handle Mtg, Dovetail |
|
- | |||||
| 74 | 215503203 | Screw, Cr Pan Hd, 10-16 X 0.500 |
|
Immediately | $ 7.09 | ||||
| 13A | 240312415 | Door Stop, Black, Frzr |
|
$ 21.27 | |||||
| 18A | 218428121 | Handle-door, Gray, W/block & Screw |
|
$ 57.41 | |||||
| 21A | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 4B | 240534701 | Rack-door, 4b |
|
Immediately | $ 28.80 | ||||
| NI | 218515401 | Clip-grille |
|
$ 17.72 |
