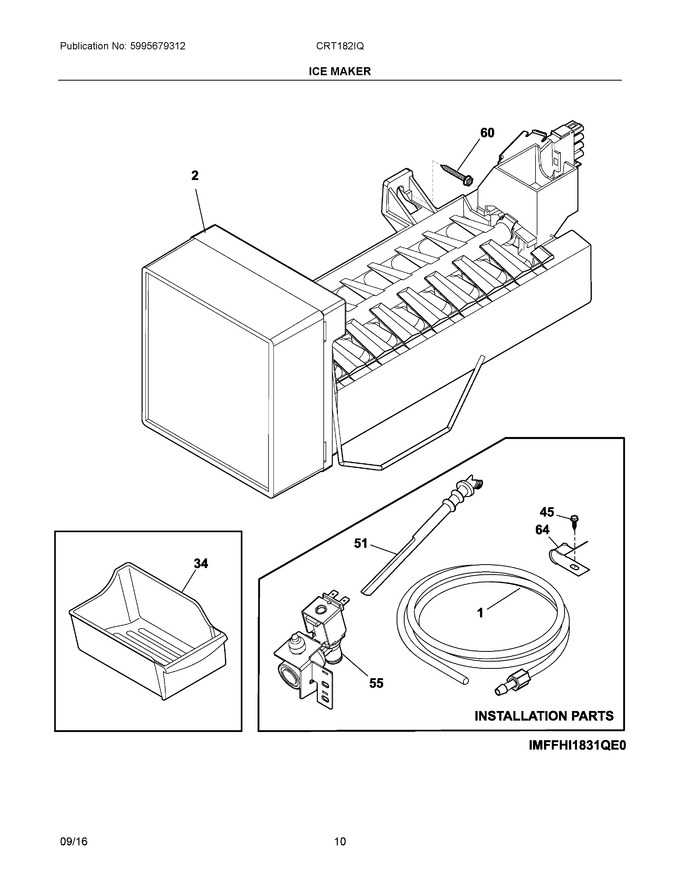

06 - Ice Maker
07 - Wiring Schematic
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976921 | Tube-water Inlet, Valve To I.m. |
|
- | |||||
| 2 | 241798231 | Ice Maker, Radius Cube, Service, 120 V, W/harness Cover (Replaces: 241798224) |
|
Immediately | $ 200.97 | ||||
| 34 | 240385201 | Container, Ice Bin |
|
$ 97.83 | |||||
| 45 | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.03 | |||||
| 55 | 242252603 | Valve-water, Solenoid Assy |
|
Immediately | $ 73.14 | ||||
| 60 | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 12.05 | |||||
| 64 | 5304455846 | Clamp, .31 Id, Steel, Water Tube |
|
$ 10.63 | |||||
| NI | 218990901 | Clip-wire |
|
$ 74.42 |
