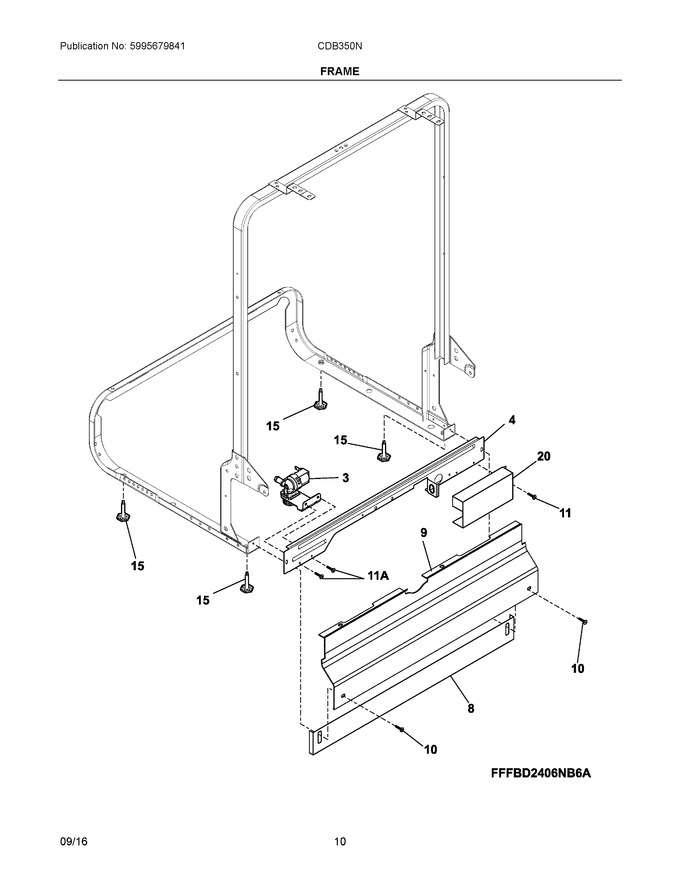

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	807047901		Valve, Water			Immediately	$ 57.90
4	5304508587		Brace, Front Frame   (Replaces: 154823701)				$ 28.92
8	154745501		Toeplate, Adjustable, White			Immediately	$ 21.27
9	5304501482		Kickplate Assy, Pvc, White, W/label				$ 51.08
10	154371301		Screw, Phillips Head, White			Immediately	$ 12.76
11	134154100		Screw, #10-32 X 3/8   (Replaces: 154200701)				$ 13.46
15	5304506540		Leg, Leveling, 1/4-20			Immediately	$ 10.85
20	154758501		Cover, Junction Box, W/label				$ 20.84
11A	808326801		Screw, Hex Hd, 8-18 X .4, W/washer   (Replaces: 154825401)				$ 2.84
NI	154041001		Screw, Plask #1, 10-10 X 9/16		Appelez-nous	-
NIA	154611101		Clamp, Hose, 1.29" Open, Worm Gear, (2)   (Replaces: 154106801)				$ 12.05
