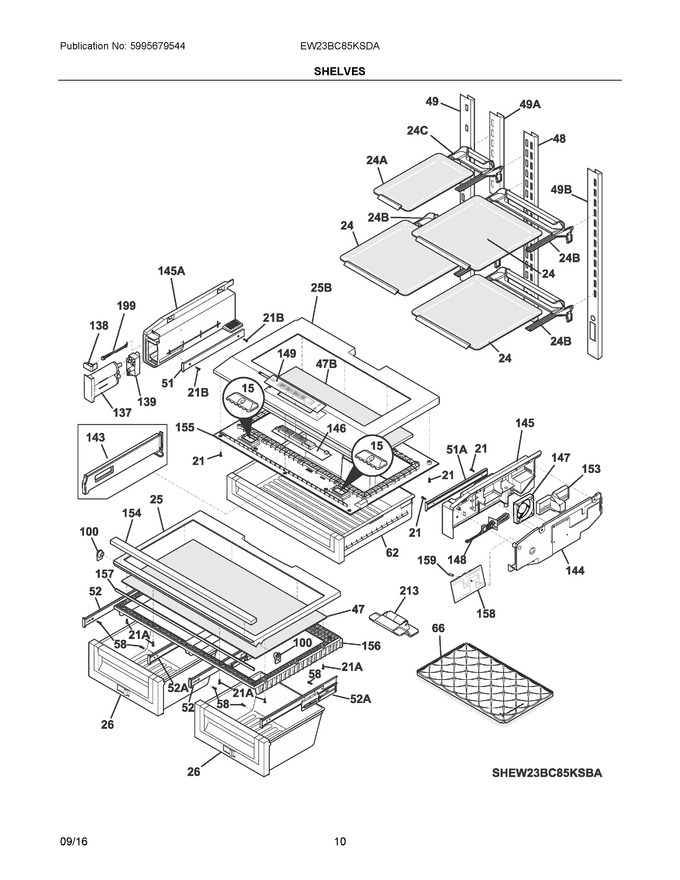

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | 241891104 | Light-led |
|
- | |||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 24 | 242128403 | Shelf-glass, Formed |
|
$ 217.08 | |||||
| 25 | 241802205 | Frame-crisper Cover, Upper |
|
$ 119.07 | |||||
| 26 | 241772808 | Pan-crisper |
|
$ 269.22 | |||||
| 47 | 241768802 | Glass-crisper Frame |
|
$ 77.36 | |||||
| 48 | 242122101 | Channel-shelf Mtg, Center |
|
$ 80.09 | |||||
| 49 | 242122204 | Channel-shelf Mtg, Side, Lh |
|
- | |||||
| 51 | 242156403 | Slide-deli Soft Close, Bm, Lh |
|
$ 146.90 | |||||
| 52 | 242156505 | Slide-crisper Cover, Soft Close, Lh, Bm |
|
$ 137.51 | |||||
| 58 | 241941202 | Screw, 8-18 X 3/8 |
|
$ 15.17 | |||||
| 62 | 241827206 | Pan-deli |
|
$ 248.49 | |||||
| 66 | 242131002 | Mat-wine |
|
$ 71.98 | |||||
| 100 | 241768601 | Support-crspr Cover |
|
$ 19.13 | |||||
| 137 | 242175101 | Filter-water, Water, Carbon Cassette, Front, With O'rings |
|
- | |||||
| 138 | 241885901 | Button-filter Release |
|
$ 28.35 | |||||
| 139 | 240396002 | Base-water Filter |
|
Immediately | $ 119.66 | ||||
| 143 | 242151004 | Divider-deli Pan |
|
- | |||||
| 144 | 241803901 | Cover-deli Air Control |
|
- | |||||
| 145 | 241803803 | Housing-deli Air Control |
|
$ 126.21 | |||||
| 146 | 241958401 | Control-electronic, Ptd |
|
$ 272.87 | |||||
| 147 | 241825704 | Fan Assembly, Motor, With Blade |
|
$ 289.58 | |||||
| 148 | 241782001 | Heater-ptd, 115 V |
|
$ 194.90 | |||||
| 149 | 242025901 | Overlay, Electronic, Membrane Switch |
|
$ 159.47 | |||||
| 153 | 241775301 | Motor-damper |
|
$ 227.24 | |||||
| 154 | 241879902 | Trim-crisper Cover |
|
$ 39.44 | |||||
| 155 | 241803403 | Frame-deli Cover, Lower |
|
$ 148.13 | |||||
| 156 | 241872006 | Frame-crisper Cover, Lower |
|
$ 119.78 | |||||
| 157 | 241872201 | Beam-crisper Cover |
|
$ 53.85 | |||||
| 158 | 241955004 | Board-main Power, Ptd |
|
$ 245.23 | |||||
| 159 | 241815401 | Cap, Pcba Hold Down |
|
- | |||||
| 199 | 240397501 | Rod |
|
$ 55.57 | |||||
| 213 | 242010901 | Roller Assy, Deli Pan |
|
$ 49.62 | |||||
| 145A | 242058709 | Support, Rail |
|
$ 90.01 | |||||
| 21A | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 21B | 241953902 | Screw, Quad Hilo, #8-18 X 0.25 (Replaces: 241953907) |
|
Immediately | $ 17.11 | ||||
| 24A | 242128404 | Shelf-glass, Formed |
|
- | |||||
| 24B | 242216402 | Bracket-shelf, W/gasket |
|
$ 273.05 | |||||
| 24C | 242216401 | Bracket-shelf, W/gasket |
|
$ 240.61 | |||||
| 25B | 5303918487 | Cover-pan, Ptd, Cover Kit |
|
$ 185.18 | |||||
| 47B | 241967401 | Glass, 2 Pane Insulatd |
|
$ 225.39 | |||||
| 49A | 5304531311 | Channel-shelf Mtg, Center, Icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122302 | Channel-shelf Mtg, Side, Rh |
|
$ 73.00 | |||||
| 51A | 242156401 | Slide-deli Soft Close, Bm, Rh |
|
$ 154.30 | |||||
| 52A | 242156506 | Slide-crisper Cover, Soft Close, Rh, Bm |
|
$ 171.47 | |||||
| NI | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| NI | 807332440 | Label, Energy Guide |
|
- | |||||
| NIA | 240527001 | O-ring, Wtr Filter Base (Replaces: 240526901) |
|
$ 10.62 | |||||
| NIA | 241835402 | Harness-wiring, Mixing Valve |
|
$ 23.39 | |||||
| NIA | 5304521780 | Harness-power Ptd (Replaces: 241822602) |
|
$ 23.51 | |||||
| NIA | 240398401 | Spring-filter Release Rod |
|
$ 59.16 | |||||
| NIA | 241936201 | Damper-rubber, Ptd Fan |
|
- | |||||
| NIA | 241858401 | Screw, #6 X 1/2 Hilo |
|
$ 13.05 | |||||
| NIA | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NIB | 242130101 | Clip, Retainer, Ptd Board |
|
- | |||||
| NIBA | 241862501 | Harness-wiring, Ptd Main W/led |
|
$ 47.48 | |||||
| NIBB | 241862601 | Harness-wiring, Ptd W/led |
|
$ 122.09 |
