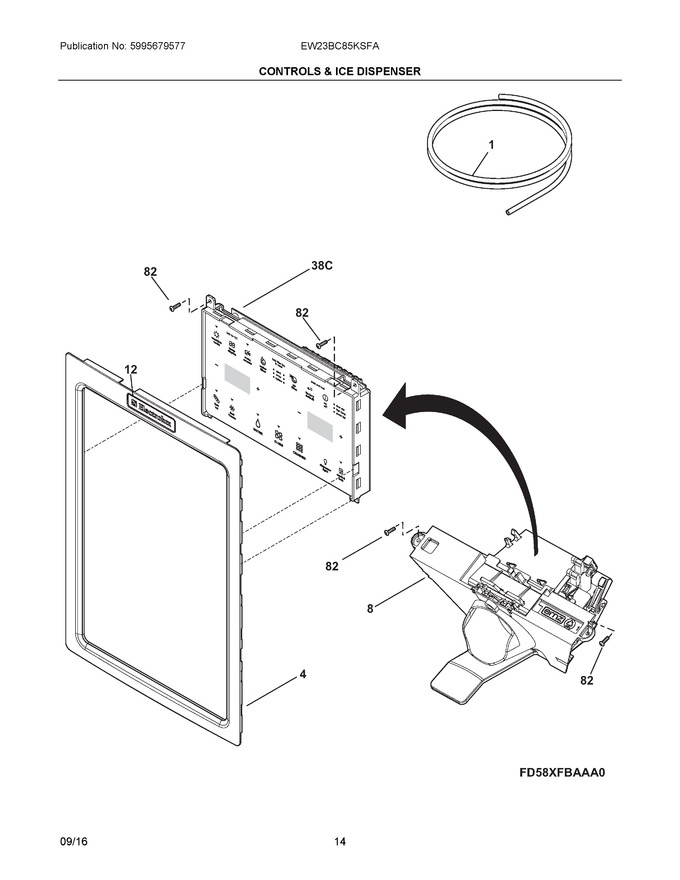

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water Inlet, 5/16 - 59", Yellow, Cd |
|
$ 20.56 | |||||
| 4 | 241893104 | Cover-module, Stainless (Replaces: 241757504) |
|
$ 71.48 | |||||
| 8 | 242100022 | Module-dispenser, Silver |
|
$ 284.29 | |||||
| 12 | 241873301 | Nameplate, Electrolux, Stainless |
|
$ 11.15 | |||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 38C | 242041122 | Board-control, Assembly, Black |
|
$ 360.78 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 242040801 | Harness-wiring, Dispenser |
|
$ 79.95 | |||||
| NI | 241503901 | Connector-water, Straight, 5/16 To 1/4 |
|
$ 51.22 | |||||
| NI | 5303918484 | Chute-ice (Replaces: 242105401) |
|
$ 30.47 | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 | |||||
| NIA | 241920106 | Tube-water, Assembly, 5/16 - 54", Green, Ice Maker Fill, W/extension (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NIB | 241964707 | Tube-water, 1/4 - 36", Green |
|
Immediately | $ 18.43 | ||||
| NIC | 241965906 | Tube-water, 5/16 - 67", Natural |
|
Immediately | $ 24.10 | ||||
| NID | 242169404 | Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension |
|
- | |||||
| NIE | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIF | 242220112 | Tube-water, .315 - 51", Brown/tan |
|
$ 19.85 | |||||
| NIG | 242220113 | Tube-water, .315 - 51", Natural |
|
$ 18.44 |
