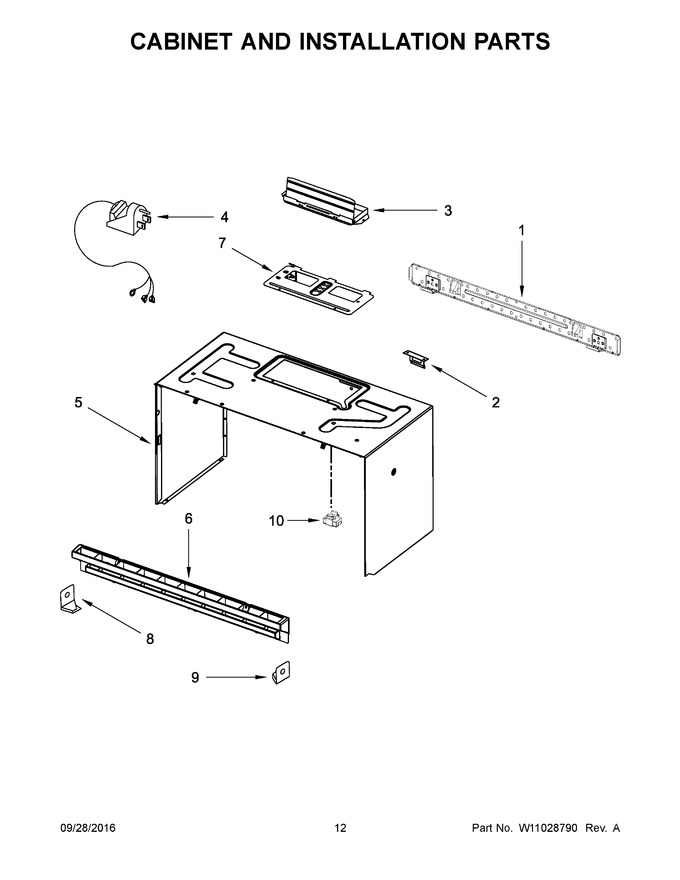

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 21.16
2	8206385		Support, Wire Clip				$ 31.89
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 65.74
4	W10708076		Cord, Power   (Replaces: W10654511)				$ 18.48
5	W10883282		Case, Outer (white)   (Replaces: W10838183)				$ 233.35
6	W10269471		Grille, Vent (white)			Immediately	$ 98.77
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10830163		Holder, Vent Left Side (black)   (Replaces: W10703285)				$ 12.18
9	W10810989		Holder, Vent Right Side (black)   (Replaces: W10703283)				$ 8.76
10	W10596040		Assembly, Mounting Nut			Immediately	$ 8.30
5A	W10883284		Case, Outer (black)   (Replaces: W10837530)				$ 233.35
6A	W10259625		Grille, Vent (black)			Immediately	$ 67.30
8A	W11026306		Holder, Vent Left Side (stainless)   (Replaces: W10703284)			Immediately	$ 6.47
9A	W10703282		Holder, Vent Right Side (stainless)				$ 9.44
NI	W10821385		Miscellaneous Parts, Hardware, Installation			Immediately	$ 88.90
NI	W10872453		Miscellaneous Parts, Harness, Main			Immediately	$ 135.88
NI	W10190018		Miscellaneous Parts, Template, Upper			Immediately	$ 6.47
NI	W10540465		Miscellaneous Parts, Harness, Hood Lamp And Turntable Motor		Appelez-nous	-
NI	W10498567		Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer			Immediately	$ 21.04
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 21.50
NI	W10470168		Miscellaneous Parts, Harness, Ntc Sensor Flat Wire				$ 36.63
NI	W10563144		Miscellaneous Parts, Ground Wire Assembly		Appelez-nous	-
