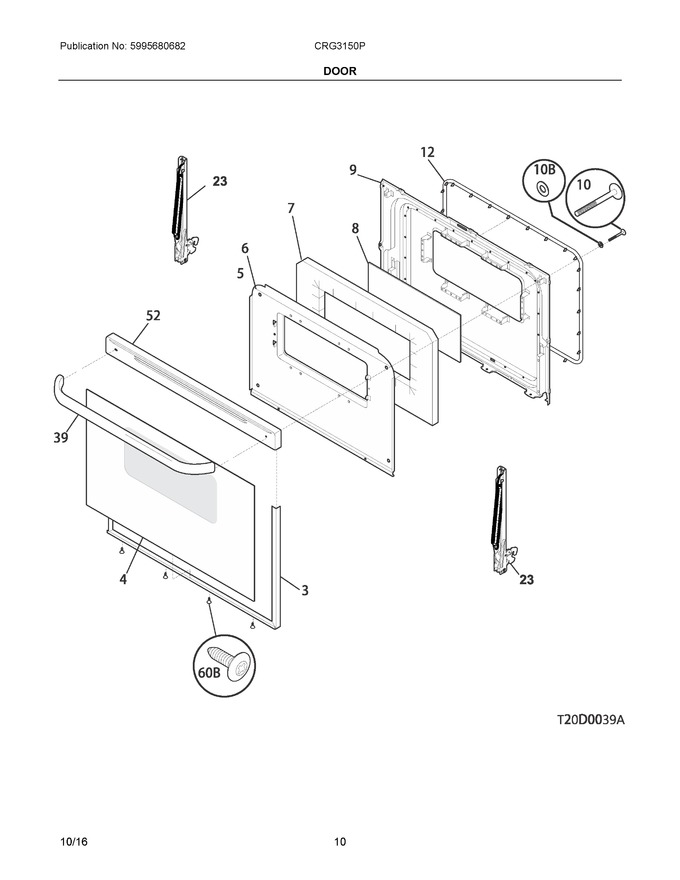

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935398 | Trim Kit-door, 3 Sided, Black, W/tape And Foil |
|
$ 54.86 | |||||
| 4 | 5303935203 | Glass, Door Kit, Black, Outer, W/foil Tape |
|
$ 211.91 | |||||
| 6 | 316222703 | Shield, Oven Door, Wool (Replaces: 316222709) |
|
$ 78.67 | |||||
| 7 | 316236802 | Insulation, Oven Door |
|
$ 41.63 | |||||
| 8 | 5304503233 | Glass, Oven Door, Inner |
|
$ 36.20 | |||||
| 9 | 316230634 | Liner, Oven Door |
|
$ 147.12 | |||||
| 10 | 316001014 | Screw, Waf Hd Sq, 10-24 X 1.6, Handle, (2) |
|
Immediately | $ 47.03 | ||||
| 12 | 316239700 | Seal, Oven Door |
|
Immediately | $ 152.43 | ||||
| 23 | 316575921 | Hinge, Oven Door, Orange |
|
Immediately | $ 42.47 | ||||
| 39 | 5304529996 | Handle, Oven Door, Black (Replaces: 316456900) |
|
$ 156.11 | |||||
| 52 | 316491201 | Cap, Door Trim, Black |
|
$ 99.94 | |||||
| 10B | 316008401 | Washer, 3/4 Od X 1/4 Id, Steel |
|
$ 11.34 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316483102 | Label, Anti-tip (Replaces: 316483100) |
|
$ 3.56 | |||||
| NI | 5303271648 | Screw, Wafer Hd Sq Dr, 8-18ab X 0.5 |
|
Immediately | $ 13.46 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
