SELECT A DIAGRAM

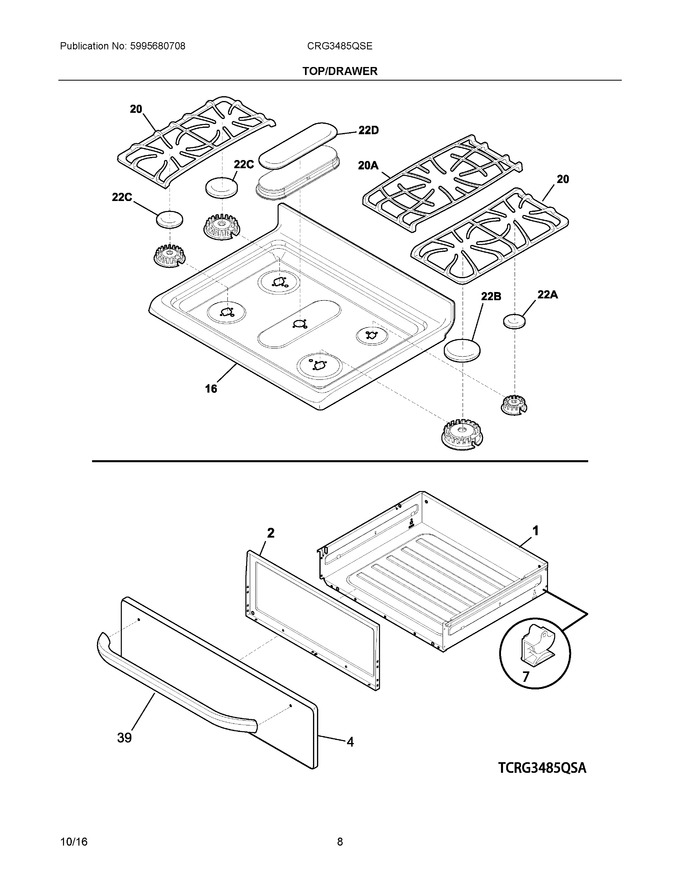

01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility (Replaces: 316408703) |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527988 | Liner, Drawer (Replaces: 316403200) |
|
Immediately | $ 26.54 | ||||
| 4 | 316581601 | Drawer Panel, Assy, Stainless, W/overlay |
|
$ 158.24 | |||||
| 7 | 316407402 | Glide, Drawer, Rear (Replaces: 316407400) |
|
Immediately | $ 9.86 | ||||
| 16 | 316469645 | Maintop Panel, Black |
|
- | |||||
| 20 | 316499806 | Grate, Black, (2) (Replaces: 316499502) |
|
$ 354.16 | |||||
| 39 | 316270200 | Handle, Door, Black |
|
$ 136.40 | |||||
| 20A | 316499806 | Grate, Center, Black (Replaces: 316551802) |
|
$ 354.16 | |||||
| 22A | 5304508441 | Cap, 5k Burner, Matte, Black (Replaces: 316261704) |
|
Immediately | $ 35.04 | ||||
| 22B | 5304508443 | Cap, 14k Burner, Matte, Black (Replaces: 316262004) |
|
Immediately | $ 46.01 | ||||
| 22C | 5304508442 | Cap, 9.5k Burner, Matte, Black (Replaces: 316261804) |
|
Immediately | $ 36.55 | ||||
| 22D | 316559604 | Cap, 9.5k Burner, Black, Oval |
|
$ 72.30 | |||||
| NI | 5304494425 | Harness, Ignitor (Replaces: 316580602) |
|
$ 86.45 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NIA | 316437500 | Screw, Handle Mtg., 10 14 X .4 Trus, (2) |
|
$ 13.39 |
