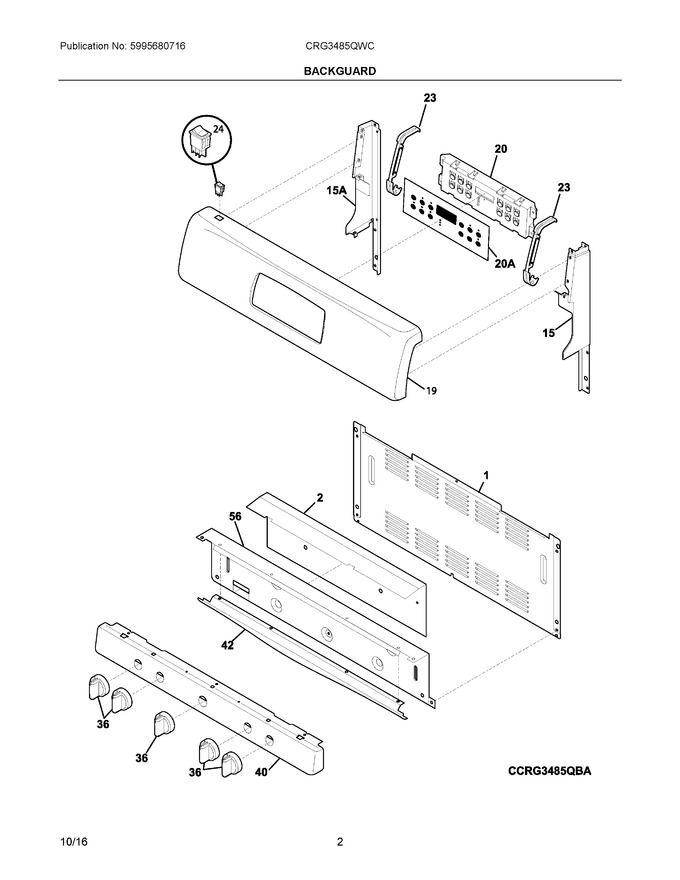

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
2	316497600		Shield, Backguard, Inner				$ 66.31
15	316411403		Support, Backguard, White, Rh				$ 84.10
19	316416096		Panel, Backguard, White				$ 180.65
20	5304509983		Clock/timer, Electronic, Es300   (Replaces: 316557101)			Immediately	$ 186.73
23	316441600		Bracket-clock Mtg, Black				$ 20.48
24	5304527842		Switch, Rocker, White, Oven Light   (Replaces: 316448701)			Immediately	$ 16.13
36	316220008		Knob, Top Valve, White, (4)			Immediately	$ 37.16
40	316290443		Panel-manifold, White		Appelez-nous	-
42	316416205		Trim, Extrusion, Gray   (Replaces: 316416201)				$ 51.57
56	316230705		Shield, Backguard, Inner		Appelez-nous	-
15A	316411402		Support, Backguard, White, Lh				$ 94.55
20A	316419137		Overlay, Clock, White, Es300			Immediately	$ 31.34
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
