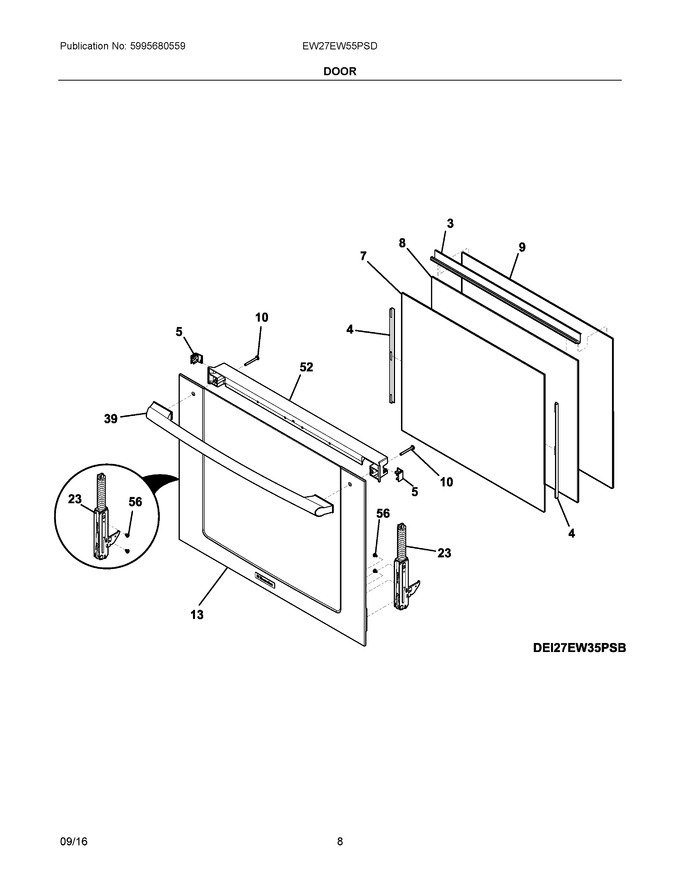

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304490893		Spacer, Door Glass, Top		Appelez-nous	-
4	808983501		Spacer, Door Glass, Silicone, (2)			Immediately	$ 28.96
5	139010800		Cap, Screw Hole, Trim, (2)				$ 16.30
7	139010503		Glass, Thermal, Inner, #2		Appelez-nous	-
8	139010502		Glass, Thermal, Inner, #1		Appelez-nous	-
9	139010403		Glass, Door, Inner				$ 193.31
10	316439507		Screw, Handle Mtg., 10-24 X 1.77", (2)				$ 21.97
13	5304491422		Door Assembly, Outer, Stainless/black, W/trim & Badge   (Replaces: 808950023)				$ 1,078.25
23	139010303		Hinge, Door, Maroon, Dual Spring				$ 105.16
39	316380805		Handle, Door, Stainless		Appelez-nous	-
52	5304498537		Trim Assembly, Door, Top		Appelez-nous	-
56	807286001		Screw, 10-32 X 1/4				$ 12.02
NI	318163602		Cleaner, Stainless Steel				$ 26.51
