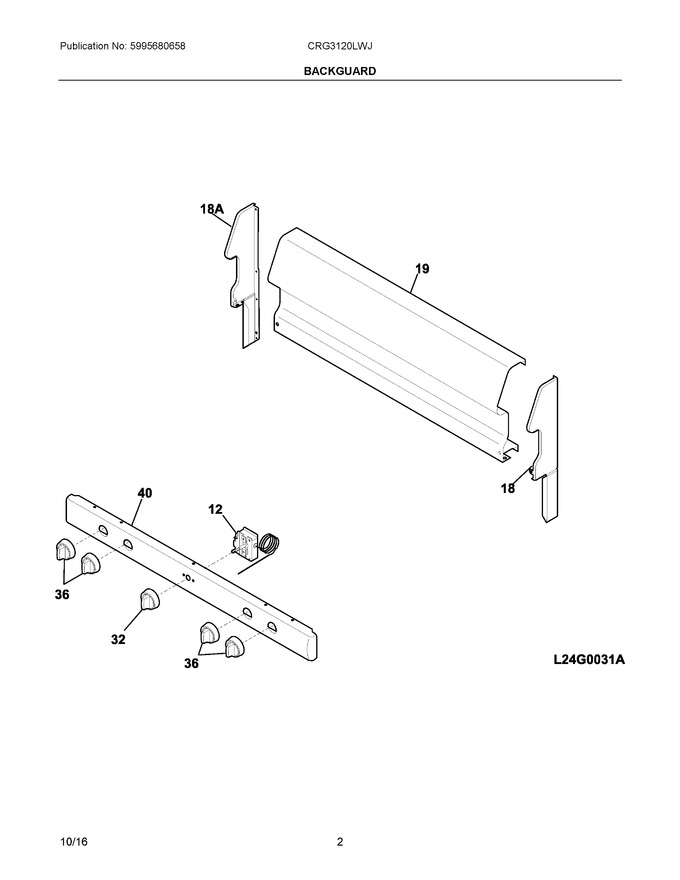

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	316032411		Thermostat			Immediately	$ 165.14
18	316263404		End Cap, White, Rh		Appelez-nous	-
19	316263382		Panel, Backguard, White		Appelez-nous	-
32	316102303		Knob, Thermostat, White				$ 61.43
36	316009045		Knob, Top Valve, White, (4)				$ 42.53
40	316458001		Panel, Manifold, White		Appelez-nous	-
18A	316263405		End Cap, White, Lh		Appelez-nous	-
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	316097602		Insulator		Appelez-nous	-
