SELECT A DIAGRAM

01 - Cover Sheet

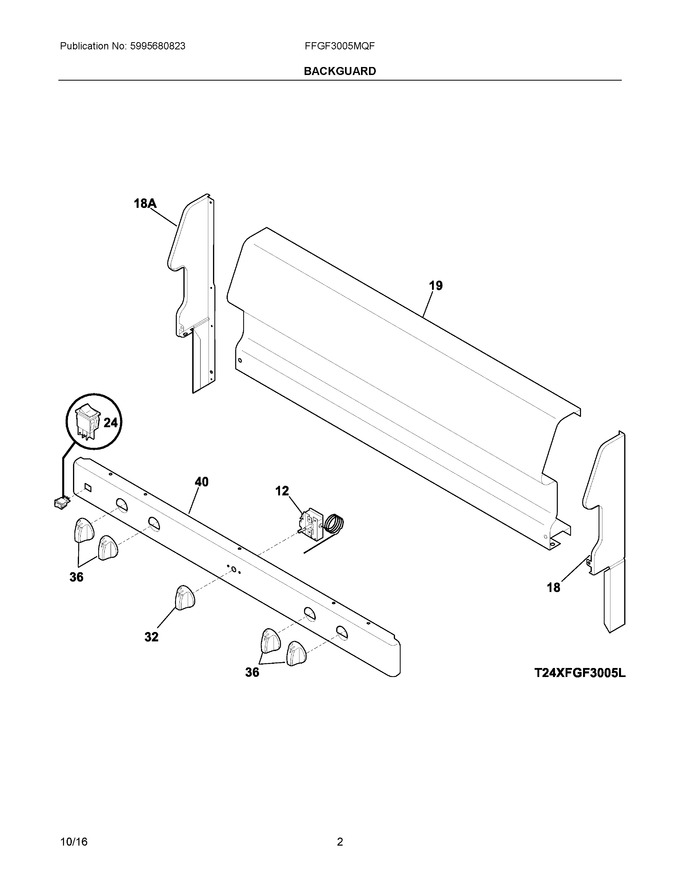

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	316032411		Thermostat			Immediately	$ 165.14
18	316263406		End Cap, Bisque, Rh		Appelez-nous	-
19	316263378		Panel, Backguard, Bisque		Appelez-nous	-
24	316261202		Switch, Rocker, Bisque		Appelez-nous	-
32	316543920		Knob, Top Valve, White, (1)		Appelez-nous	-
36	316543911		Knob, Top Valve, Bisque, (4)		Appelez-nous	-
40	316458058		Panel, Manifold, Bisque		Appelez-nous	-
18A	316263407		End Cap, Bisque, Lh		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
NIA	316097602		Insulator		Appelez-nous	-
