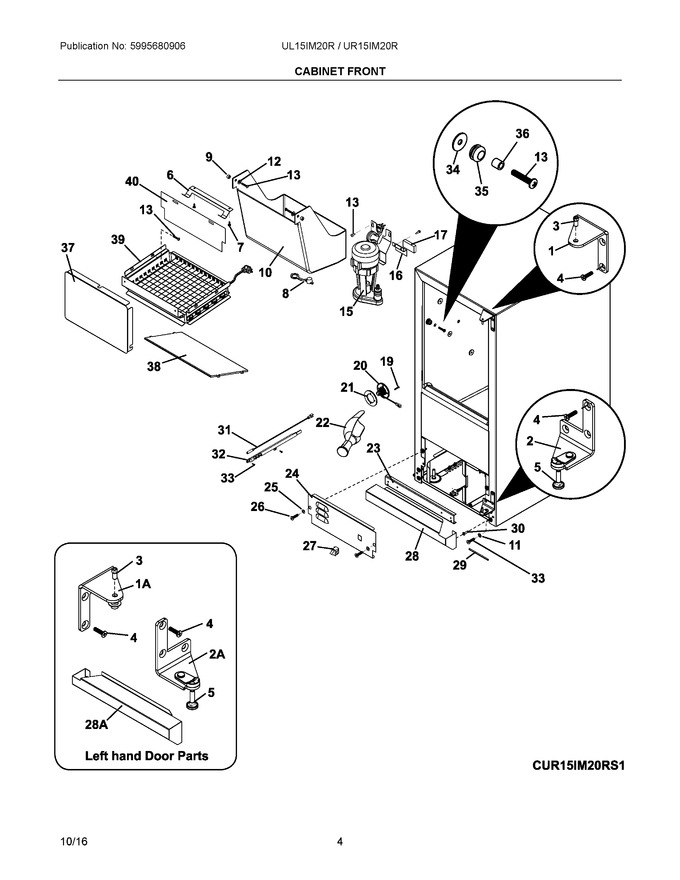

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet Front


04 - Cabinet Rear/control


05 - Cooling System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304496822		Hinge, Door Top, Rh Swing				$ 238.93
2	5304496819		Hinge, Door Bottom, Rh Swing		Appelez-nous	-
3	5304496824		Pin, Top Hinge				$ 217.59
4	5304503785		Screw, Phl Head Csk, #10-32 X 3/4", Machine				$ 100.66
5	5304496848		Bushing, Hinge Pin, Upper				$ 8.99
6	5304503786		Bracket, Splash Shield		Appelez-nous	-
7	5304496721		Screw, Truss Head, #10-32 X 1/2		Appelez-nous	-
8	5304503787		Plug, Drain, Reservoir		Appelez-nous	-
9	5304503788		Spacer, 1/4		Appelez-nous	-
10	5304503789		Reservoir, (incl 9, 12, 13)		Appelez-nous	-
11	5304496728		Washer, Flat, #10 Countersunk		Appelez-nous	-
12	5304503790		Washer, Plastic		Appelez-nous	-
13	5304503791		Screw, Machine, #10-32 X 1		Appelez-nous	-
15	5304503792		Pump, Circulation				$ 1,534.63
16	5304503793		Bracket, Pump, Circulation		Appelez-nous	-
17	5304503794		Bumper, Pump, Circulation		Appelez-nous	-
19	5304503795		Screw, Flat Head, #6 X 3/4		Appelez-nous	-
20	5304503796		Light, Led		Appelez-nous	-
21	5304503797		Gasket, Led Light		Appelez-nous	-
22	242099001		Scoop, Ice		Appelez-nous	-
23	5304503798		Reinforcement, Hinge		Appelez-nous	-
24	5304507945		Cover, Service		Appelez-nous	-
25	5304503800		Washer, Csk Flat, #10		Appelez-nous	-
26	5304503801		Screw, Hinge		Appelez-nous	-
27	5304507946		Switch, Rocker, Light				$ 73.00
28	5304503803		Grille, Rh Swing		Appelez-nous	-
29	5304503805		Protector, Edge		Appelez-nous	-
30	5304503806		Screw, Flat Head Ab, #12 X 3/4		Appelez-nous	-
31	5304503807		Sensor, Bin				$ 150.89
32	5304503808		Cover, Thermistor		Appelez-nous	-
33	5304496729		Screw, Ph Cntrsnk Hd, #10-32 X 3/4		Appelez-nous	-
34	5304503809		Washer, Flat, Stainless		Appelez-nous	-
35	5304503810		Grommet, Rubber		Appelez-nous	-
36	5304503811		Spacer		Appelez-nous	-
37	5304503812		Cover, Grid Cutter		Appelez-nous	-
38	5304503813		Deflector, Ice		Appelez-nous	-
39	5304503814		Grid Cutter, Assembly, (incl 12, 13)				$ 696.47
40	5304503815		Shield, Splash		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
