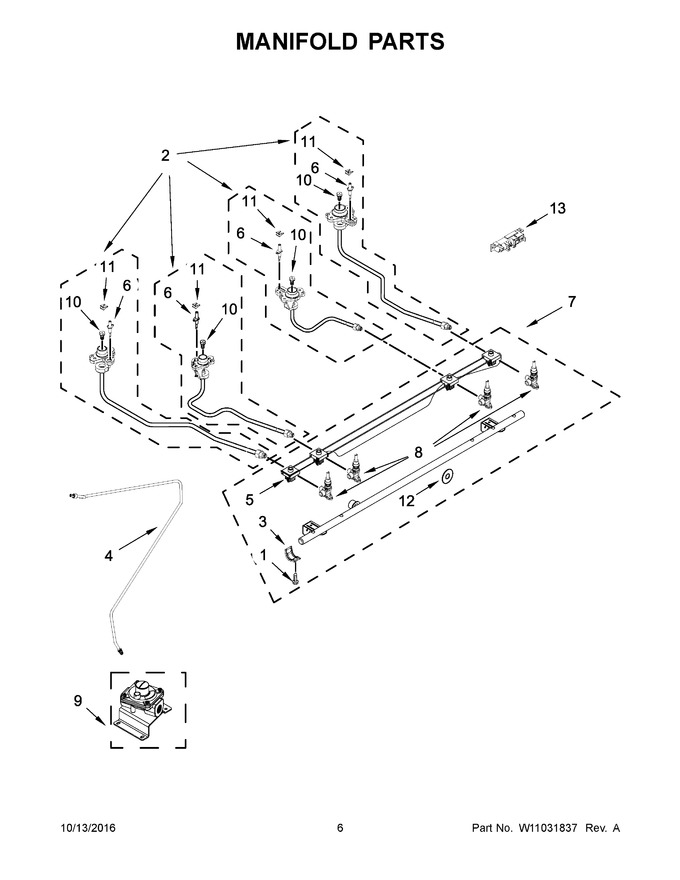

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11666001 | Screw (Replaces: W10246216) |
|
$ 12.24 | |||||
| 2 | W10552143 | Orifice, Assembly (right Front) |
|
$ 106.18 | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 19.50 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 80.78 | |||||
| 5 | W10578095 | Harness, Spark Switch |
|
$ 146.02 | |||||
| 6 | W11220383 | Electrode (right Rear) (Replaces: W10496872) |
|
Immediately | $ 56.73 | ||||
| 7 | W10556307 | Manifold, Assembly (Replaces: W10790616) |
|
$ 321.50 | |||||
| 8 | W11223016 | Valve, Gas (left Front & Right Front) (Replaces: W10566042) |
|
Immediately | $ 226.90 | ||||
| 9 | W10661850 | Assembly, Regulator & Bracket |
|
$ 112.50 | |||||
| 10 | W10821182 | Orifice (right Front) (Replaces: W10434277) |
|
Immediately | $ 80.11 | ||||
| 11 | W10575401 | Clip, Spring (electrode) (right Front, Right Rear, And Left Front) |
|
Immediately | $ 10.17 | ||||
| 12 | W10140571 | Seal, Switch Shaft |
|
$ 6.60 | |||||
| 13 | W11693498 | Module, Spark (Replaces: W10475148) |
|
$ 90.61 | |||||
| 14 | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 6.26 | |||||
| 10A | W11752198 | Orifice (right Rear) (Replaces: W10657949) |
|
$ 28.54 | |||||
| 10B | W11690133 | Orifice (left Front) (Replaces: W10657946) |
|
Immediately | $ 30.24 | ||||
| 10C | W10756981 | Orifice (left Rear) (Replaces: W10515054) |
|
Immediately | $ 14.81 | ||||
| 11A | W10256046 | Clip, Spring (electrode) |
|
$ 9.91 | |||||
| 2A | W10552142 | Orifice, Assembly (right Rear) |
|
$ 106.07 | |||||
| 2B | W10552133 | Orifice, Assembly (left Rear) |
|
$ 106.07 | |||||
| 2C | W10552136 | Orifice, Assembly (left Front) |
|
$ 108.66 | |||||
| 6A | W11447374 | Electrode (right Front) (Replaces: W10496870) |
|
Immediately | $ 41.49 | ||||
| 6B | W10496873 | Electrode (left Rear) |
|
- | |||||
| 6C | W11611678 | Electrode (left Front) (Replaces: W10496874) |
|
Immediately | $ 29.68 | ||||
| 8A | W10873136 | Valve, Gas (left Rear) (Replaces: W10831588) |
|
$ 233.70 | |||||
| 8B | W11163975 | Valve, Gas (right Rear) (Replaces: W10566050) |
|
Immediately | $ 169.85 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11126047 | Kit, Lp Conversion (burners) (Replaces: W10566083) |
|
Immediately | $ 108.43 | ||||
| NI | W11087486 | Kit, Lp Conversion (bake/broil) (Replaces: W10566535) |
|
Immediately | $ 101.10 |
