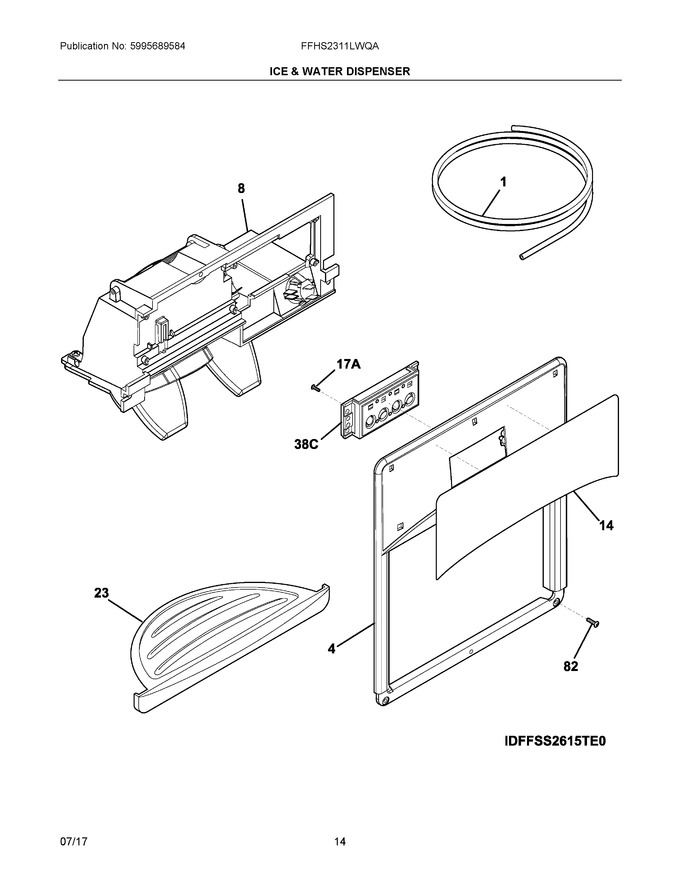

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door |
|
Immediately | $ 20.56 | ||||
| 4 | 241679001 | Cover-module, White |
|
$ 75.71 | |||||
| 8 | 240563637 | Module-dispenser Wht (Replaces: 240563607) |
|
$ 316.39 | |||||
| 10 | 241688901 | Spring-torsion |
|
Immediately | $ 21.27 | ||||
| 14 | 240570228 | Label-module Cover, White |
|
- | |||||
| 15 | 241689401 | Light Bulb |
|
- | |||||
| 16 | 240548901 | Socket-light |
|
$ 63.70 | |||||
| 17 | 241679801 | Screw (Replaces: 5304421619) |
|
$ 14.18 | |||||
| 23 | 241649007 | Drip Tray, White (Replaces: 241649001) |
|
$ 29.58 | |||||
| 24 | 241682001 | Actuator-water, White |
|
Immediately | $ 57.41 | ||||
| 30 | 241688401 | Door Assy-ice Chute (Replaces: 5304421628) |
|
$ 49.62 | |||||
| 35 | 241689301 | Damper-rotary (Replaces: 5304421620) |
|
$ 70.52 | |||||
| 39 | 241688801 | Pin-hinge (Replaces: 5304421627) |
|
$ 43.24 | |||||
| 41 | 241689001 | Spring-actuator (Replaces: 5304421829) |
|
$ 21.97 | |||||
| 43 | 215296301 | Screw, Plask H/l, #6 X 3/8 |
|
- | |||||
| 56 | 241689201 | Screw-micro Switch, Pan Head (Replaces: 5304421830) |
|
$ 13.46 | |||||
| 82 | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| 87 | 241688302 | Bearing Plate (Replaces: 5304421622) |
|
$ 19.85 | |||||
| 88 | 241686101 | Shield-light |
|
$ 36.02 | |||||
| 10A | 241688901 | Spring-torsion (Replaces: 5304426649) |
|
Immediately | $ 21.27 | ||||
| 17A | 5304433185 | Screw, Switch Mtg. |
|
- | |||||
| 24A | 241681901 | Actuator-ice, White |
|
$ 80.80 | |||||
| 30A | 241688501 | Door Center (Replaces: 5304421624) |
|
$ 52.97 | |||||
| 30B | 241688601 | Insulation-door (Replaces: 5304421625) |
|
$ 63.17 | |||||
| 30C | 241688701 | Door Seal (Replaces: 5304421629) |
|
$ 40.46 | |||||
| 38A | 241689105 | Switch-micro, Single Pole, Double Throw |
|
- | |||||
| 38C | 5304525097 | Switch (Replaces: 241679101) |
|
$ 103.90 | |||||
| 87A | 241688301 | Bearing Plate (Replaces: 5304421621) |
|
$ 19.85 | |||||
| NI | 218515403 | Clip-grille |
|
$ 29.06 | |||||
| NIA | 218976439 | Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door |
|
$ 19.13 | |||||
| NIAA | 241679201 | Harness-wiring |
|
$ 82.22 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIC | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 20.56 | ||||
| NICA | 241873301 | Harness-wiring (Replaces: 241686001) |
|
$ 11.15 | |||||
| NID | 242220206 | Tube-water Inlet, .315 - 97.50", Brown/tan |
|
$ 46.78 |
