SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

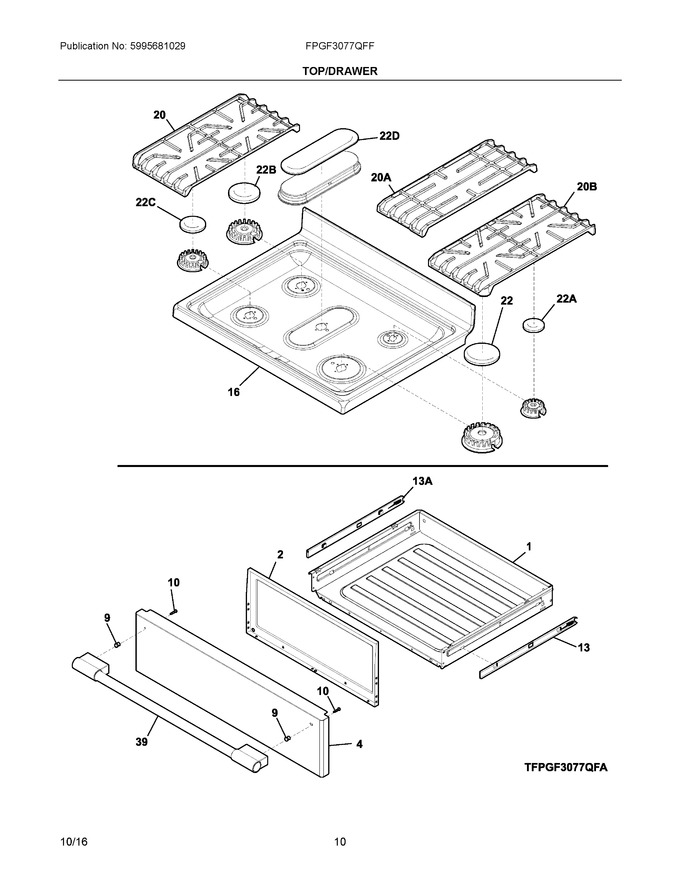

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807108405		Drawer, Utility, Black   (Replaces: 807108404)				$ 125.44
2	5304527988		Liner, Black, Drawer   (Replaces: 316403203)			Immediately	$ 26.54
4	5304494412		Panel, Drwaer Front, Stainless				$ 98.53
9	5304494420		Nut, Hour Glass, Handle Mtg.				$ 12.76
10	5304414648		Screw, Handle Mtg.				$ 14.18
13	316415000		Glide, Warmer, Inner Rh				$ 58.82
16	316610006		Main Top, Black				$ 194.90
20	808754701		Grate, Black, Lh				$ 193.49
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
39	5304494423		Handle, Asm			Immediately	$ 314.69
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 58.82
20A	808754801		Grate, Black, Center				$ 197.04
20B	808754702		Grate, Black, Rh				$ 193.49
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22B	316261904		Cap, 12k Burner, Black				$ 46.36
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 72.30
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
