01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Main Top


06 - Doors


07 - Wiring Diagram


08 - Wiring Diagram

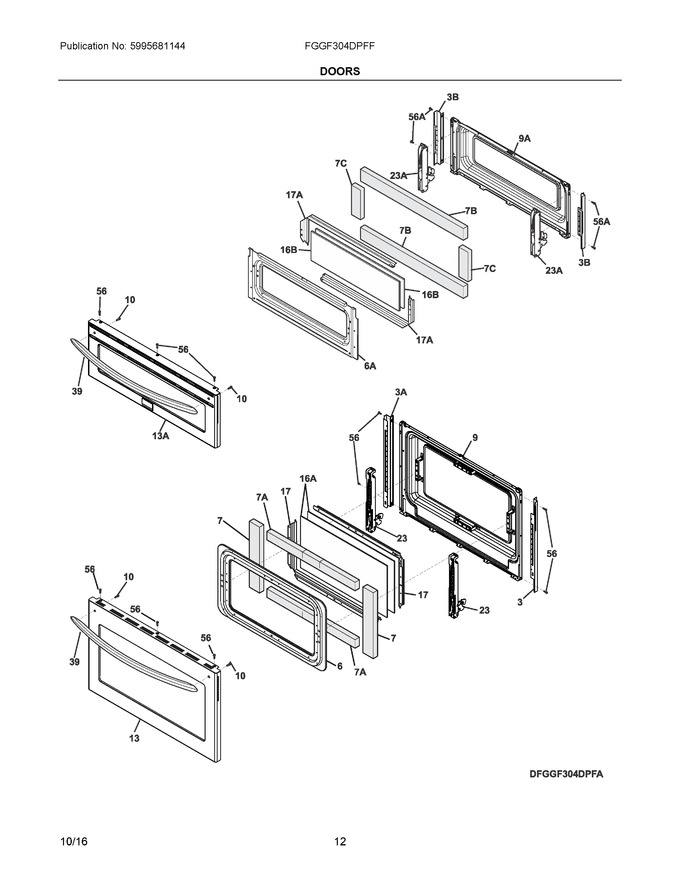

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	808047711		Trim, Door Side, Black, Rh		Appelez-nous	-
6	807045902		Shield, Wool		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
9	808211106		Liner, Door		Appelez-nous	-
10	5303288572		Screw-handle Mtg		Appelez-nous	-
13	808609603		Door Assembly, Outer, Stainless/black, Lower Oven, W/trim		Appelez-nous	-
17	807045802		Spacer, Door Glass, Inner, (2)		Appelez-nous	-
23	316575946		Hinge, Oven Door, Light Yellow, Lower		Appelez-nous	-
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 168.44
56	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
13A	807979903		Door Assembly, Outer, Glass, Black/stainless, Upper Oven, W/trim & Badge		Appelez-nous	-
16A	318212216		Glass, Oven Door, Heat Barrier, Hbii				$ 160.76
16B	318212212		Glass, Upper Oven, Heat Barrier, (2), Hbii				$ 249.80
17A	318264732		Spacer, Glass, Upper, (2)		Appelez-nous	-
23A	318567133		Hinge, Door, Blue, Upper Oven, (2)		Appelez-nous	-
3A	808047712		Trim, Door Side, Black, Lh		Appelez-nous	-
3B	807437305		Trim, Door Side, Black, Upper Oven, (2)		Appelez-nous	-
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
6A	318260526		Baffle, Door, Upper		Appelez-nous	-
7A	808949801		Insualtion, Oven Door, Top/bottom		Appelez-nous	-
7B	318372016		Insulation, Door				$ 17.72
7C	807168601		Insulation, 6.625 X 2.375, 1" Thick, (2)		Appelez-nous	-
9A	318950705		Liner, Oven Door, Upper		Appelez-nous	-
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NI	316355100		Insulation, Flue/side/door		Appelez-nous	-
