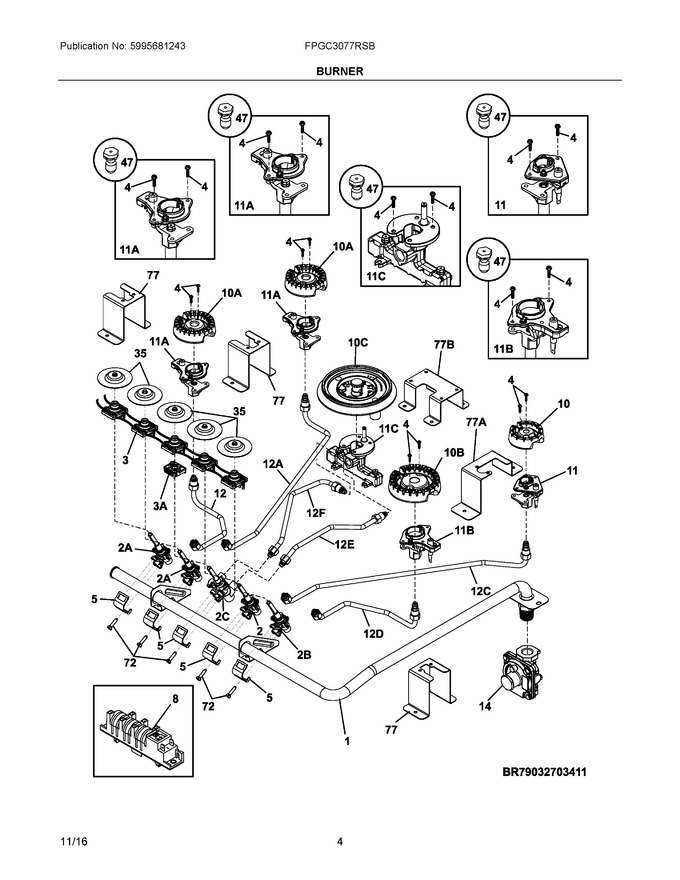

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505687		Manifold, Tube, 30", 5 Valve		Appelez-nous	-
2	5304505693		Valve, Saddle, 680 Btu, Orange Stem				$ 80.85
3	5304527828		Switch Assembly, Ignitor, W/harness   (Replaces: 305595115)			Immediately	$ 32.91
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
5	357733402		Bracket, Valve Fixing				$ 9.66
8	5304537114		Module, Spark, 6 Outputs   (Replaces: 5304505696)			Immediately	$ 47.88
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	5304498786		Ignitor/orifice Assy., Top Burner, 5k				$ 82.93
12	5304499397		Tube, Burner, Lh Front		Appelez-nous	-
14	5304519943		Regulator, Pressure   (Replaces: 318122727)				$ 129.93
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
47	5304508445		Lp Kit, Gas Conversion				$ 83.84
72	5304508436		Screw, Saddle Valve, M4		Appelez-nous	-
77	5304498799		Bracket, Ignitor/orifice, Mounting				$ 18.43
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10C	5304501023		Burner Assembly, G5				$ 165.99
11A	5304498787		Ignitor/orifice Assy., Top Burner, 9.5k				$ 119.83
11B	5304498788		Ignitor/orifice Assy., Top Burner, 12k				$ 134.19
11C	316440107		Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder				$ 198.04
12A	5304499398		Tube, Burner, Lh Rear		Appelez-nous	-
12C	5304499399		Tube, Burner, Rh Rear		Appelez-nous	-
12D	5304499400		Tube, Burner, Rh Front		Appelez-nous	-
12E	5304508438		Tube, Dual Burner, Secondary		Appelez-nous	-
12F	5304508437		Tube, Dual Burner, Main		Appelez-nous	-
2A	5304505690		Valve, Saddle, 850 Btu, Green Stem			Immediately	$ 69.77
2B	5304505691		Valve, Saddle, 1125 Btu, Blue Stem			Immediately	$ 69.01
2C	5304508435		Valve, Saddle, 1500/2000 Btu, Yellow Stem, Dual Burner				$ 190.81
3A	5304508439		Adapter, Switch, Dual Valve				$ 15.92
77A	5304498800		Bracket, Ignitor/orifice, 5k Burner, Mounting		Appelez-nous	-
77B	5304500254		Bracket, Twin Burner		Appelez-nous	-
NI	305338602		Screw, (3)		Appelez-nous	-
NI	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 5.67
NIA	318199780		Wiring Harness, Ignitor				$ 100.56
NICA	316566901		Sleeve, Insulator				$ 12.89
