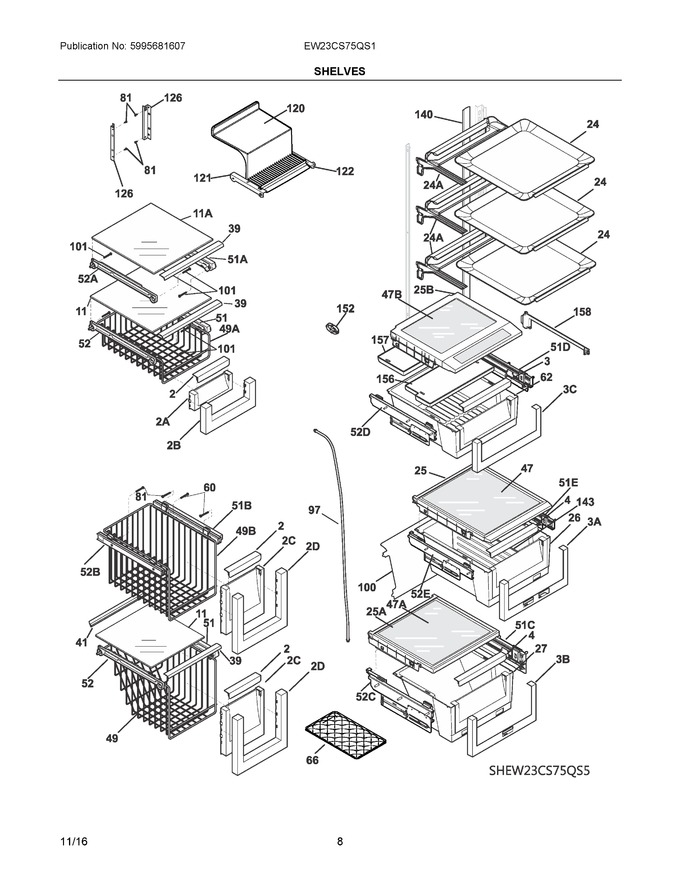

05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241741301		Trim-basket				$ 55.99
3	241745301		Handle-crisper Pan, Silver				$ 74.81
4	241950801		Handle-crisper Pan, Silver				$ 58.59
11	241711213		Shelf-freezer, Glass, Lower   (Replaces: 240443357)				$ 86.45
24	242128406		Shelf-"spill-safe", Formed Glass, Lift-off		Appelez-nous	-
25	241745502		Cover-crisper Pan, Upper		Appelez-nous	-
26	241745604		Pan-crisper, Upper, W/divi Retainer		Appelez-nous	-
27	241950502		Pan-crisper, Lower				$ 229.64
39	240367603		Trim-shelf, 11.65", Front				$ 74.42
41	241571201		Trim-shelf, Rear		Appelez-nous	-
47	240350649		Insert-pan Cover, Glass			Immediately	$ 123.89
49	241744201		Basket-sliding				$ 170.05
51	241799801		Hanger-shelf Glass, Rh				$ 58.82
52	241799901		Hanger-shelf Glass, Lh				$ 74.32
60	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 12.05
62	241783502		Pan-meat				$ 212.44
66	242131002		Mat-wine				$ 71.98
81	218843801		Screw, Hx Wshr Hd Sems, 8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
97	218976409		Tube, Water, 60", Natural, Door			Immediately	$ 60.25
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
120	242148901		Shelf-ice Cream		Appelez-nous	-
121	242148801		Rail-ice Cream Shelf, Lh		Appelez-nous	-
122	242148802		Rail-ice Cream Shelf, Rh		Appelez-nous	-
126	241674401		Channel, Auger Mtg, Lh				$ 47.48
140	241812502		Channel, Wtr Tube Cover				$ 76.97
143	241746001		Divider-crisper Pan				$ 51.50
152	242183301		Seal-return Air				$ 12.71
11A	240443358		Shelf-freezer, Glass, Upper				$ 97.07
126A	241674402		Channel, Auger Mtg, Rh				$ 43.24
24A	242216403		Bracket-shelf, W/gasket, & Lock		Appelez-nous	-
25A	241747102		Cover-crisper Pan, Lower				$ 99.49
25B	241861501		Cover-meat Pan, Cantilever				$ 73.71
2A	241741601		Trim-basket, Front				$ 41.11
2B	241742101		Front-frzr Basket				$ 33.18
2C	241743201		Trim-basket				$ 83.69
2D	241743901		Trim-basket				$ 38.27
3A	241745801		Trim-crisper, W/hum Cntl&btn		Appelez-nous	-
3B	241745901		Trim-crisper, W/hum Cntl&btn		Appelez-nous	-
3C	241748601		Trim-meat Pan				$ 29.07
47A	240350603		Insert-pan Cover, Glass			Immediately	$ 115.52
47B	240443380		Insert-pan Cover, Glass, Meat Pan				$ 93.29
49A	241742201		Basket-sliding, Upper, Half		Appelez-nous	-
49B	241744001		Basket-sliding, Upper, Full		Appelez-nous	-
51A	241514701		Hanger-shelf Glass, Rh				$ 63.79
51B	241809101		Hanger-basket, Rh				$ 187.82
51C	240579814		Hanger-basket, Lower Crisper, Rh				$ 181.40
51D	240579822		Hanger-basket, 10.19, Rh				$ 102.06
51E	240579818		Hanger-basket, Upper Crisper, Rh		Appelez-nous	-
52A	241514801		Hanger-shelf Glass, Lh				$ 343.75
52B	241809102		Hanger-basket, Lh				$ 158.05
52C	240579813		Hanger-basket, Lower Crisper, Lh				$ 195.51
52D	240579820		Hanger-basket, 10.19, Lh				$ 100.65
52E	240579817		Hanger-basket, Upper Crisper, Lh				$ 279.41
NI	242174901		Nut-soft Close Spacer		Appelez-nous	-
NI	241938101		Screw, Truss Hd, 8-8ab X 1 3/4		Appelez-nous	-
NIBA	297049500		Clip-slide, Basket			Immediately	$ 20.56
NIBA	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
NICA	242169702		Spacer-soft Close, Rh				$ 86.10
NICA	242169701		Spacer-soft Close, Lh				$ 70.56
NIEA	242169902		Spacer-soft Close, Rh		Appelez-nous	-
NIEA	242169901		Spacer-soft Close, Lh				$ 76.23
