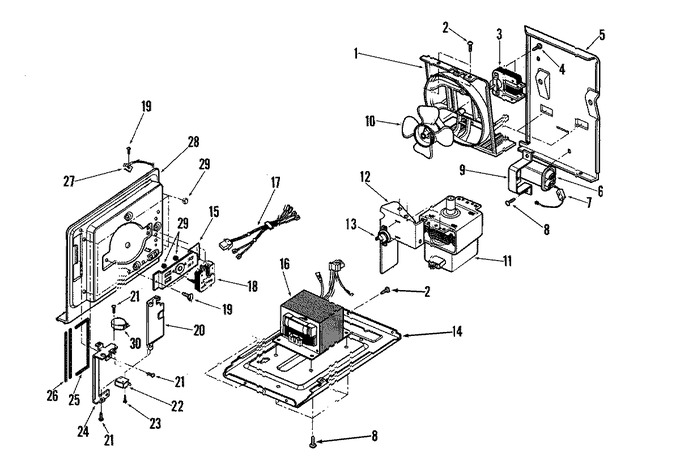

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53001428 | Guide, Suction | 10 |
|
- | ||||
| 2 | R0654183 | Screw, Truss Hd | 10 |
|
- | ||||
| 3 | 53001433 | Motor, Fan | 10 |
|
- | ||||
| 4 | R9800411 | Screw, Tap Th | 10 |
|
- | ||||
| 5 | 53001446 | Guide, Air | 10 |
|
- | ||||
| 6 | WP59001168 | Capacitor (Replaces: 53001365) | 10 |
|
Immediately | $ 208.35 | |||
| 7 | WPR9800486 | Diode Cable Assy (Replaces: R0131275) | 10 |
|
$ 26.79 | ||||
| 8 | 4344826 | Screw, Bining Hd S/tap (Replaces: R0654143) | 10 |
|
$ 14.31 | ||||
| 9 | 53001427 | Bracket, Capacitor | 10 |
|
- | ||||
| 10 | R0654051 | Fan | 10 |
|
- | ||||
| 11 | 53001431 | Magnetron | 10 |
|
$ 197.25 | ||||
| 12 | 53001445 | Guide, Air | 10 |
|
- | ||||
| 13 | 53001437 | Thermostat | 10 |
|
- | ||||
| 14 | 53001441 | Plate, Bottom | 10 |
|
- | ||||
| 15 | 53001456 | Bracket, Circulation Motor | 10 |
|
- | ||||
| 16 | 53001430 | Transformer | 10 |
|
$ 220.64 | ||||
| 17 | 53001436 | Harness | 10 |
|
- | ||||
| 18 | 53001452 | Motor, Circulation | 10 |
|
- | ||||
| 19 | R0654036 | Screw, Truss Hd S/tap | 10 |
|
- | ||||
| 20 | 53001448 | Damper | 10 |
|
- | ||||
| 21 | R0654180 | Screw, Pan Hd | 10 |
|
- | ||||
| 22 | 53001090 | Wrap, Cabinet (bsq) | 10 |
|
- | ||||
| 23 | 53001463 | Screw, Pan Head | 10 |
|
- | ||||
| 24 | 53001439 | Bracket, Damper | 10 |
|
- | ||||
| 25 | 53001460 | Cushion | 10 |
|
- | ||||
| 26 | 53001521 | Cushion | 10 |
|
- | ||||
| 27 | R0130687 | Thermistor | 10 |
|
- | ||||
| 28 | 53001453 | Insulator | 10 |
|
- | ||||
| 29 | R0654026 | Nut, Hex | 10 |
|
- | ||||
| 30 | 53001140 | Motor, Damper | 10 |
|
- |
