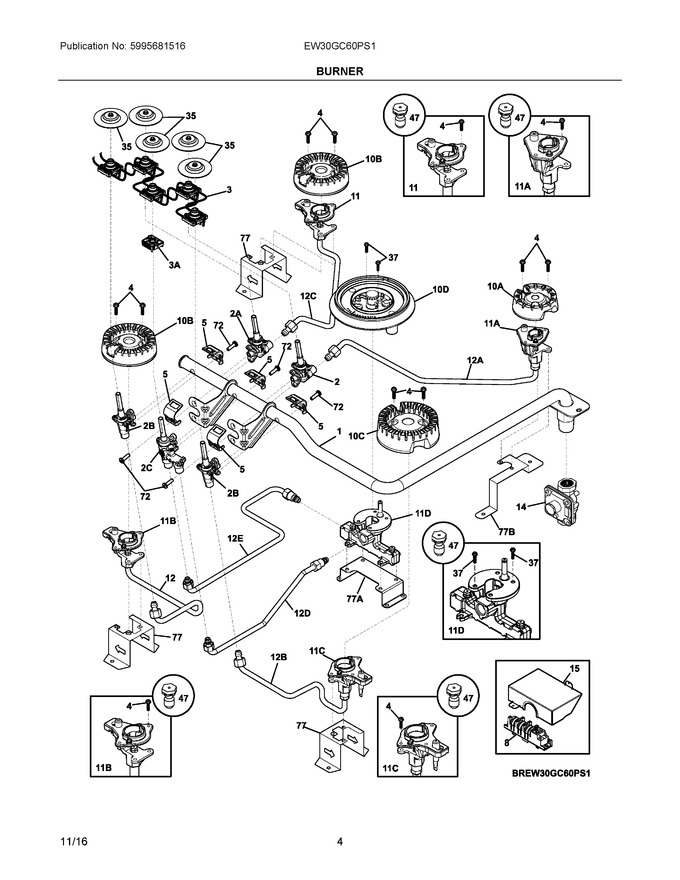

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304508470		Manifold Pipe		Appelez-nous	-
2	5304508471		Valve, Saddle, 670/750 Btu, Orange Stem				$ 68.26
3	5304527828		Switch Assembly, Ignitor, W/harness   (Replaces: 305595115)			Immediately	$ 32.91
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
5	357733402		Bracket, Valve Fixing				$ 9.66
8	5304537114		Module, Spark, 6 Outputs   (Replaces: 5304505696)			Immediately	$ 47.88
11	5304499396		Ignitor/orifice Assy., Top Burner, 7.5k				$ 60.96
12	318560725		Tube, Burner, Lf				$ 41.32
14	5304519943		Regulator, Pressure   (Replaces: 318122727)				$ 129.93
15	318024209		Deflector, Spark Module				$ 21.16
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
37	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 5.67
47	5304506288		Lp Kit, Gas Conversion				$ 83.06
72	5304508436		Screw, Saddle Valve, M4		Appelez-nous	-
77	318920309		Bracket, Burner Mtg, (3)		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10C	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10D	5304501023		Burner Assembly, G5				$ 165.99
11A	5304498786		Ignitor/orifice Assy., Top Burner, 5k				$ 82.93
11B	5304498787		Ignitor/orifice Assy., Top Burner, 9.5k				$ 119.83
11C	5304498788		Ignitor/orifice Assy., Top Burner, 12k				$ 134.19
11D	5304529110		Ignitor/orifice Assy., Top Burner, Twin, 18k, W/holder   (Replaces: 316440108)			Immediately	$ 152.08
12A	318560724		Tube, Burner, Rr				$ 37.38
12B	318560723		Tube, Burner, Rf				$ 39.69
12C	318560726		Tube, Burner, Lr, (2)				$ 37.38
12D	5304508474		Tube, Dual Burner, Secondary		Appelez-nous	-
12E	5304508473		Tube, Dual Burner, Main		Appelez-nous	-
2A	5304508472		Valve, Saddle, 1350/1500 Btu, Pink Stem				$ 68.26
2B	5304508464		Valve, Saddle, 1800/2000 Btu, Red Stem				$ 65.98
2C	5304508465		Valve, Saddle, 1500/2000 Btu, Clear Stem				$ 203.24
3A	5304508439		Adapter, Switch, Dual Valve				$ 15.92
77A	305583001		Bracket, Burner, Dual				$ 10.66
77B	318920304		Bracket, Burner Mtg		Appelez-nous	-
NI	305338702		Screw, (4)		Appelez-nous	-
NI	305338602		Screw, (3)		Appelez-nous	-
NIA	318199780		Wiring Harness, Ignitor				$ 100.56
NIA	803910601		Screw, (2)		Appelez-nous	-
NIB	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIDA	316566901		Sleeve, Insulator				$ 12.89
