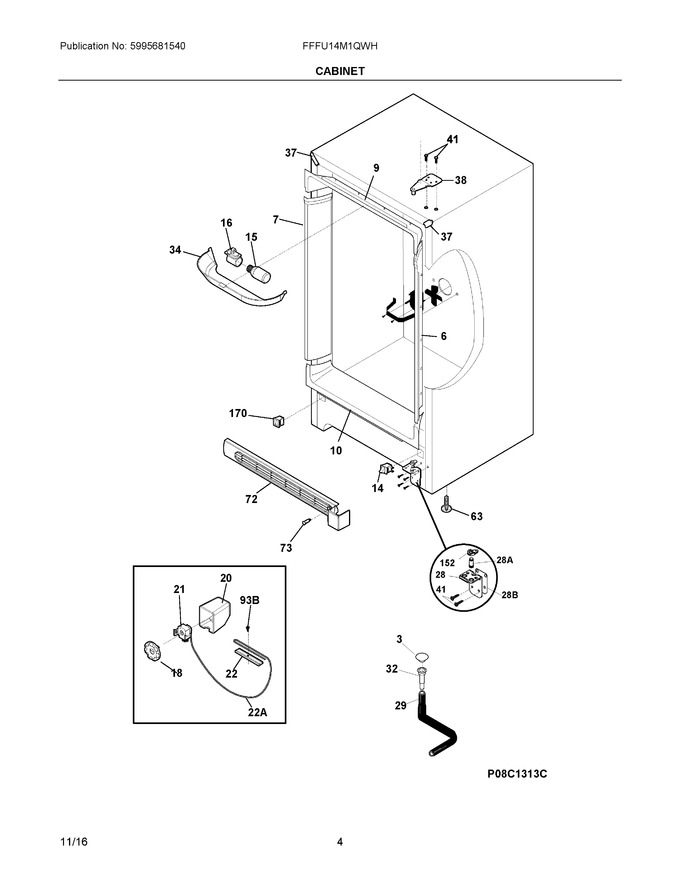

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug, Drain, Interior			Immediately	$ 17.35
6	297435603		Breaker, U12/u14, No Lock		Appelez-nous	-
7	297435602		Breaker, U12/u14, W/lock		Appelez-nous	-
9	297381501		Breaker, Top				$ 48.91
10	297381502		Breaker, Bottom		Appelez-nous	-
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket, Light/lamp, 25 W				$ 19.52
18	216707200		Knob, Temp Control				$ 44.10
20	297013800		Cover-control Housing				$ 80.43
21	5304501378		Control-temperature		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
26	297415900		Ramp, Door Closer			Immediately	$ 24.74
28	297416301		Hinge, Reversible, Bottom Rh				$ 15.18
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 297382000)				$ 13.74
34	297184400		Shield-light				$ 21.16
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273904		Trim-cabinet Corner, White, (2)				$ 7.59
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 19.52
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297387806		Grille, W/signal Light				$ 63.79
73	5304495394		Light Signal, Round, Green			Immediately	$ 28.20
93	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
152	5304511026		Closer, Bearing Hinge   (Replaces: 297416000)			Immediately	$ 10.13
170	297280400		Valve, Breather				$ 10.13
28A	297438300		Pin, Bottom Hinge				$ 7.23
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	5304495532		Energy Guide		Appelez-nous	-
NI	5304503155		Use & Care Guide		Appelez-nous	-
NI	5304498525		Service Data Sheet		Appelez-nous	-
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
