01 - Cover Sheet


02 - Cook Top


03 - Burner


04 - Wiring Diagram

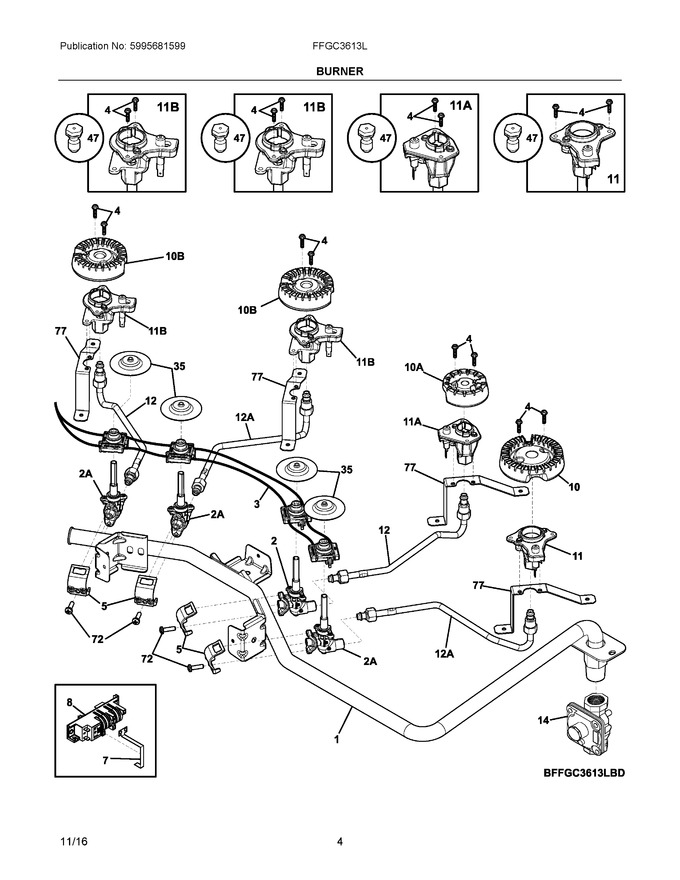

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304508508		Manifold Pipe		Appelez-nous	-
2	5304508471		Valve, Saddle, 670/750 Btu, Orange Stem				$ 68.26
3	305595113		Switch Assembly, Ignitor, W/harness		Appelez-nous	-
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
5	357733402		Bracket, Valve Fixing				$ 9.66
7	318024201		Bracket, Spark Module				$ 9.08
8	5304505695		Module, Spark, 4 Outputs			Immediately	$ 68.16
10	316438000		Burner, Sealed, 12k				$ 67.81
11	5304508509		Ignitor/orifice Assy., Top Burner, 12k, W/holder		Appelez-nous	-
12	318560730		Tube, Burner, (2)		Appelez-nous	-
14	5304519943		Regulator, Pressure   (Replaces: 318122727)				$ 129.93
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
47	5304506284		Lp Kit, Gas Conversion		Appelez-nous	-
72	5304508436		Screw, Saddle Valve, M4		Appelez-nous	-
77	318192619		Bracket, Burner Mtg, (4)		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
11A	5304498786		Ignitor/orifice Assy., Top Burner, 5k				$ 82.93
11B	5304498787		Ignitor/orifice Assy., Top Burner, 9.5k				$ 119.83
12A	318560731		Tube, Burner, (2)		Appelez-nous	-
2A	5304508472		Valve, Saddle, 1350/1500 Btu, Pink Stem				$ 68.26
NI	305338702		Screw, (4)		Appelez-nous	-
NI	305309701		Screw, Phil, 4.2 X 6.5, (20)				$ 5.67
NI	305338602		Screw		Appelez-nous	-
NI	318199792		Wiring Harness, Ignitor		Appelez-nous	-
NIA	305338604		Screw, 6-32 X 1/4", Back		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
