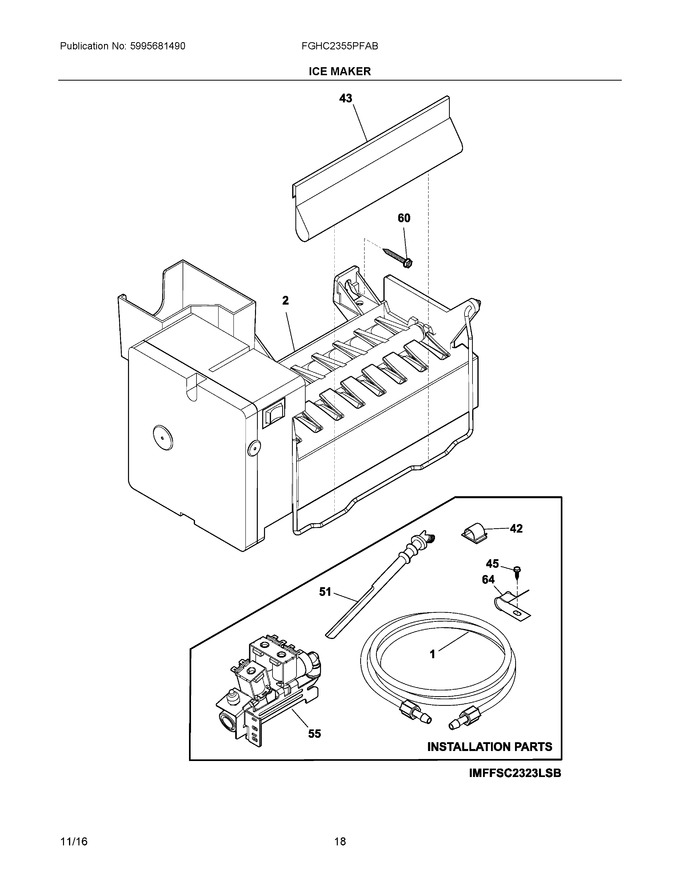

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door |
|
Immediately | $ 20.56 | ||||
| 2 | 5304468880 | Ice Maker, Radius Cube, 115 V (Replaces: 241709804) |
|
$ 227.47 | |||||
| 42 | 218515403 | Clip-grille |
|
$ 29.06 | |||||
| 43 | 241720601 | Extension |
|
$ 20.56 | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 51 | 241796406 | Tube-water Fill, Extension |
|
$ 19.85 | |||||
| 55 | 242252702 | Valve, Solenoid, Triple |
|
Immediately | $ 132.71 | ||||
| 60 | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 12.05 | |||||
| 64 | 5304455846 | Clamp, 0.31 Id, Steel, Copper Wtr Line (Replaces: 5303001549) |
|
$ 10.63 | |||||
| NI | 242150301 | Harness-wiring, Icmkr/container |
|
- | |||||
| NI | 241583301 | Deflector-air, Ice Maker |
|
$ 46.78 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 218976421 | Tube-water Inlet, Valve To Door |
|
$ 20.56 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIC | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker (Replaces: 240561702) |
|
Immediately | $ 20.56 | ||||
| NID | 242220206 | Tube-water Inlet, .315 - 97.50", Brown/tan |
|
$ 46.78 |
