01 - Base/latch Board Assembly


02 - Blower Motor


03 - Cavity


04 - Control Panel/door Assembly


05 - Installation


06 - Internal Controls/convection


07 - Outer Case/vent Grille


08 - Supplemental Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53001440		Motor, Turntable	10	Appelez-nous	-
2	R0654180		Screw, Pan Hd	10	Appelez-nous	-
3	53001409		Shaft, Turntable	10	Appelez-nous	-
4	53001438		Fan Assembly	10	Appelez-nous	-
5	53001400		Canopy	10	Appelez-nous	-
6	53001444		Supporter	10	Appelez-nous	-
7	53001515		Nut	10	Appelez-nous	-
8	53001455		Insulator Assembly	10	Appelez-nous	-
9	53001515		Nut	10	Appelez-nous	-
10	53001450		Insulation	10	Appelez-nous	-
11	53001426		Bracket, Heater	10	Appelez-nous	-
12	R0654036		Screw, Truss Hd S/tap	10	Appelez-nous	-
13	R0654044		Washer	10	Appelez-nous	-
14	R0654045		Washer, Spring Lock	10	Appelez-nous	-
15	R0654027		Nut, Hex	10	Appelez-nous	-
16	R0130686		Fan, Stirrer	10	Appelez-nous	-
17	53001451		Heater	10	Appelez-nous	-
18	53001424		Bracket, Heater	10	Appelez-nous	-
19	53001425		Bracket, Heater	10	Appelez-nous	-
20	53001404		Tray, Glass	10	Appelez-nous	-
21	53001419		Tray, Metal	10	Appelez-nous	-
22	53001421		Shelf	10	Appelez-nous	-
23	53001024		Ring, Rotating	10	Appelez-nous	-

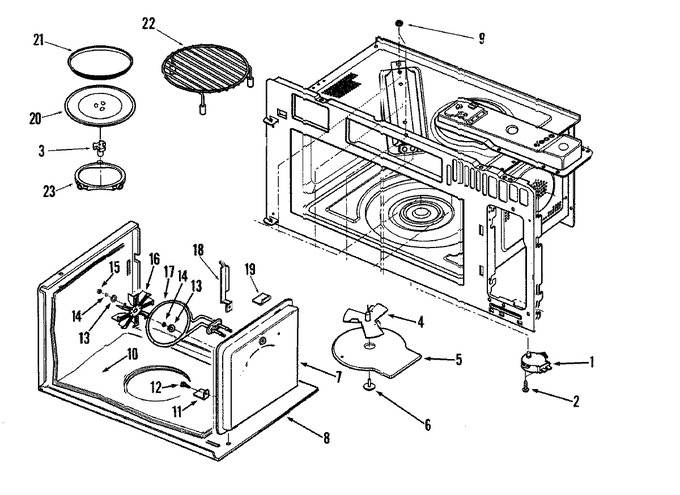

    View Diagram in Separate Window       Print Part List
