01 - Cover Sheet

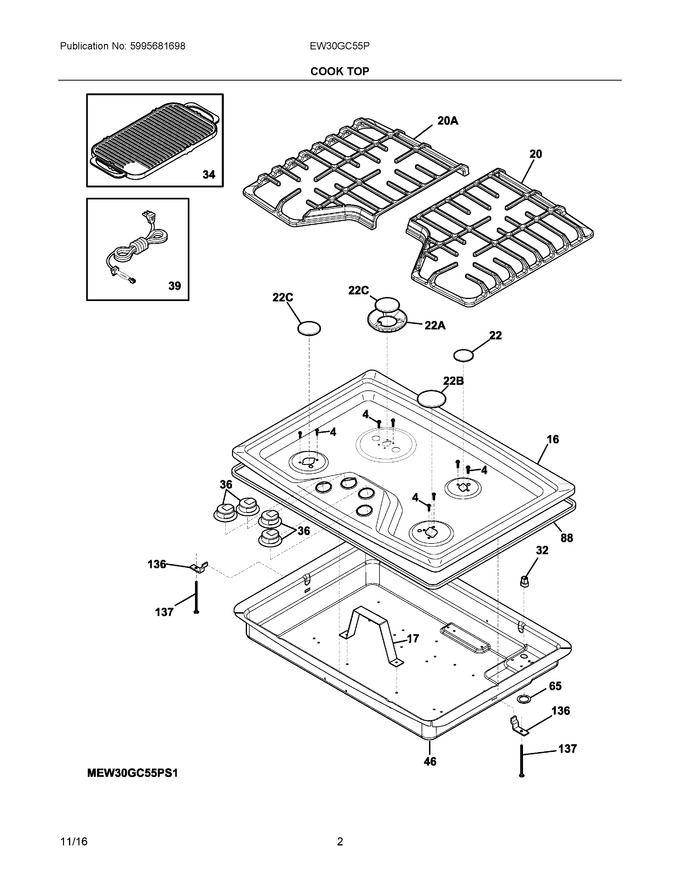

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
16	808957702		Maintop, Stainless, W/graphics				$ 286.44
17	318406301		Bracket, Retainer		Appelez-nous	-
20	318391408		Grate, Top Burner, Black, Rh				$ 277.12
22	5304508441		Cap, 5k Burner, Matte, Black			Immediately	$ 35.04
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
34	318251615		Griddle, 30" Cooktop Optional Accessory				$ 256.58
36	318569904		Knob, Top Valve, Stainless, (5)			Immediately	$ 90.72
39	305574902		Power Cord, Electrical, Supply				$ 69.46
46	305385916		Box, Burner		Appelez-nous	-
65	5304506478		Seal, Rubber				$ 11.34
88	808992701		Gasket, Cooktop		Appelez-nous	-
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
20A	318391505		Grate, Top Burner, Black, Lh				$ 275.00
22A	5304519953		Cap, Burner, Black, G5   (Replaces: 139029203)				$ 165.17
22B	5304508443		Cap, 14k Burner, Matte, Black			Immediately	$ 46.01
22C	5304508442		Cap, 9.5k Burner, Matte, Black			Immediately	$ 36.55
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
