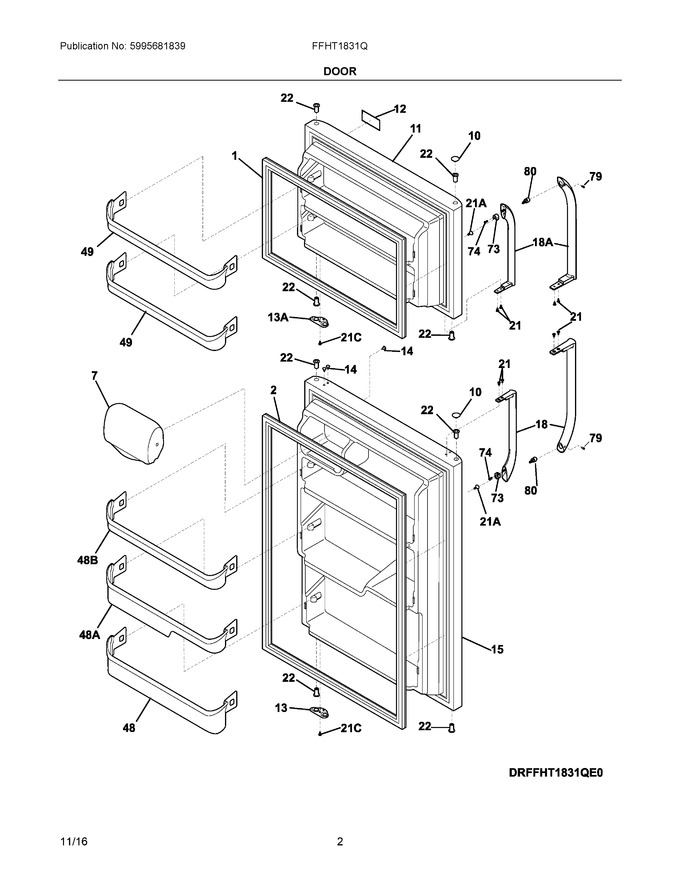

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193203 | Gasket-frzr Door, White, Magnetic |
|
Immediately | $ 197.62 | ||||
| 2 | 242193206 | Gasket-refr Door, White, Magnetic |
|
Immediately | $ 197.62 | ||||
| 7 | 240337712 | Door-dairy |
|
Immediately | $ 36.41 | ||||
| 10 | 240381301 | Plug-button, White, Hinge Brg Hole, (2) |
|
Immediately | $ 18.95 | ||||
| 11 | 240437418 | Door-frzr, White, Complete Assy |
|
$ 513.90 | |||||
| 12 | 242016301 | Nameplate, Frigidaire |
|
$ 4.26 | |||||
| 13 | 240312421 | Door Stop, White, Ref (Replaces: 240312403) |
|
$ 15.17 | |||||
| 14 | 240494001 | Plug-button, Screw Type, White (Replaces: 240428301) |
|
Immediately | $ 18.20 | ||||
| 15 | 240438633 | Door-refr, White, Complete Assy |
|
$ 463.63 | |||||
| 18 | 5304506469 | Handle-door, White, Refr-rh/frzr-lh (Replaces: 242059504) |
|
Immediately | $ 69.75 | ||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge, Natural, (8) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338101 | Bin-door |
|
Immediately | $ 52.37 | ||||
| 49 | 240495805 | Bin-door, Pseudo, Frzr |
|
$ 50.94 | |||||
| 73 | 218396701 | Block-handle Mtg, Dovetail |
|
- | |||||
| 74 | 215503203 | Screw, Cr Pan Hd, 10-16 X 0.500 |
|
Immediately | $ 7.09 | ||||
| 13A | 240312414 | Door Stop, White, Frzr |
|
$ 19.13 | |||||
| 18A | 5304506469 | Handle-door, White, Refr-lh/frzr-rh (Replaces: 242059501) |
|
Immediately | $ 69.75 | ||||
| 21A | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 48A | 240337901 | Bin-door |
|
Immediately | $ 52.13 | ||||
| 48B | 240338001 | Bin-door |
|
Immediately | $ 34.96 |
