Diagram for 01 - Base/latch Board Assembly
01 - Base/latch Board Assembly

Diagram for 02 - Blower Motor
02 - Blower Motor

Diagram for 03 - Cavity
03 - Cavity

Diagram for 04 - Control Panel/door Assembly
04 - Control Panel/door Assembly

Diagram for 05 - Installation
05 - Installation

Diagram for 06 - Internal Controls/convection
06 - Internal Controls/convection

Diagram for 07 - Outer Case/vent Grille
07 - Outer Case/vent Grille

No Diagram Image Available
08 - Supplemental Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 53001491 Control Panel/switch Asy (wht) 10 Appelez-nous -
2 53001397 Bracket, Control Panel 10 Appelez-nous -
3 53001396 Board, Control (pcb) 10 Appelez-nous -
4 53001462 Screw, Pan Head 10 Appelez-nous -
5 R0654183 Screw, Truss Hd 10 Appelez-nous -
6 53001344 Capacitor 10 Appelez-nous -
7 53001390 Door Assembly (wht) 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

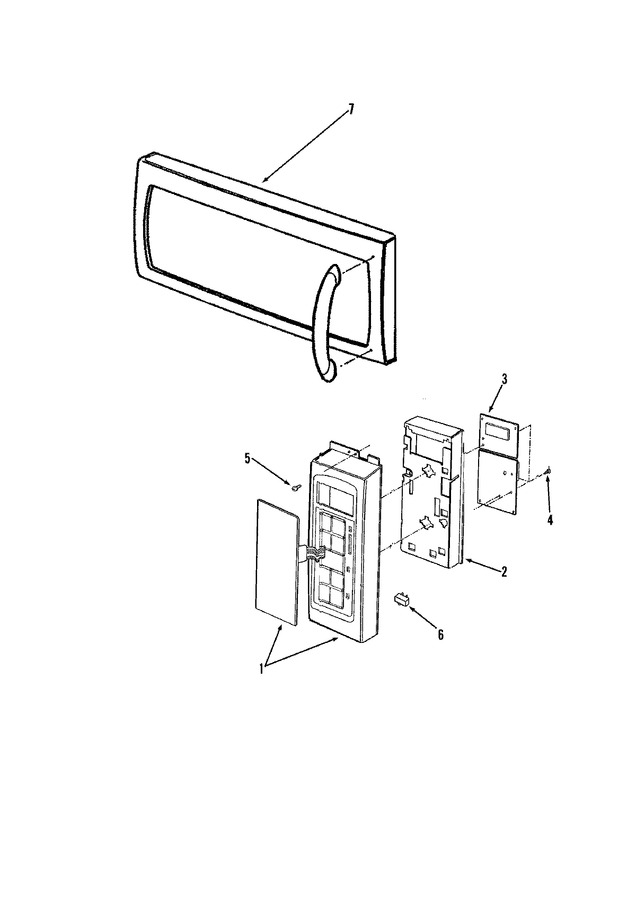

Diagram for AMV6177AAW
