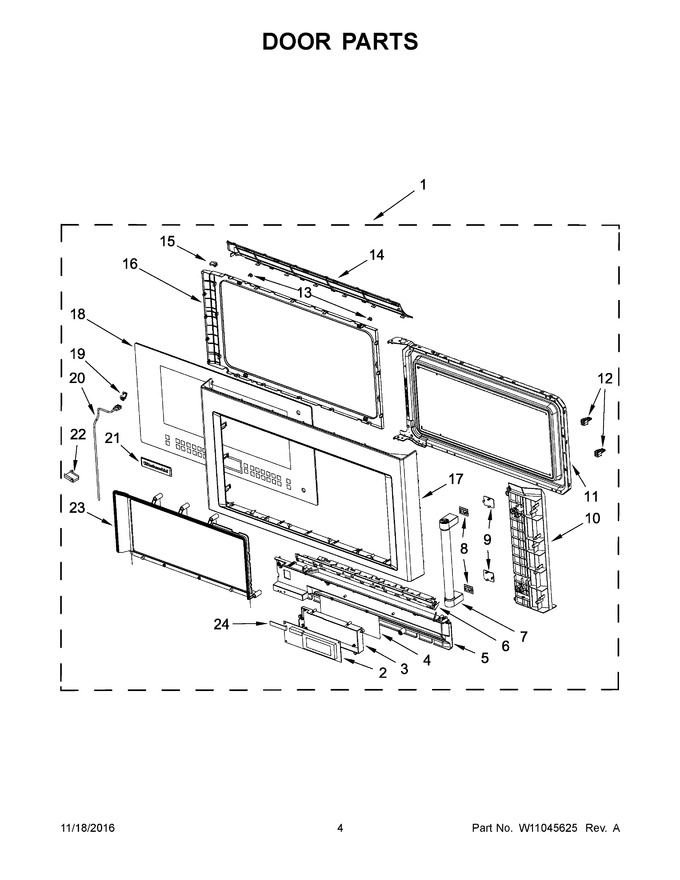

03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11205120		Door, Complete (white)   (Replaces: W11034402)		Appelez-nous	-
2	W11202852		Control   (Replaces: W10832519)		Appelez-nous	-
3	W10770970		Holder, Ui		Appelez-nous	-
4	W10540298		Plate, Ui Insulation		Appelez-nous	-
5	W10617743		Cover, Ui		Appelez-nous	-
6	W10476546		Bracket, Door		Appelez-nous	-
7	W10604264		Assembly, Handle				$ 251.50
8	W11590575		Cushion, Handle   (Replaces: W10540736)				$ 20.22
9	W10571119		Cover, Screw (white)		Appelez-nous	-
10	W10734944		Bracket, Outer Door (white)		Appelez-nous	-
11	W10568846		Body, Door (with Glass)				$ 215.51
12	W10740455		Hooks, Door			Immediately	$ 48.17
13	W10542546		Cover, Screw				$ 76.13
14	W10570992		Frame, Back Decorating (white)		Appelez-nous	-
15	W10643448		Stopper, Door				$ 19.76
16	W10897612		Frame, Inner				$ 127.74
17	W10688547		Assembly, Door Frame (white)				$ 254.19
18	W10861345		Glass, Door				$ 302.19
19	W10770972		Holder, Door Cable		Appelez-nous	-
20	W10508745		Wire, Door Control Cable				$ 24.86
21	W10909682		Badge (stainless)   (Replaces: W10518673)			Immediately	$ 65.31
22	W10770971		Bracket, Door Cable		Appelez-nous	-
23	W10509362		Cable, Sensor		Appelez-nous	-
24	W10478647		Plate, Steam Protection				$ 82.94
10A	W11699920		Bracket, Outer Door (black)   (Replaces: W10734943)				$ 73.87
14A	W10476550		Frame, Back Decorating (black)		Appelez-nous	-
17A	W10688548		Assembly, Door Frame (black)		Appelez-nous	-
17B	W10688550		Assembly, Door Frame (stainless)				$ 380.16
1A	W11205119		Door, Complete (black)   (Replaces: W11034403)		Appelez-nous	-
1B	W11205122		Door, Complete (stainless)   (Replaces: W11034404)				$ 534.74
9A	W10478657		Cover, Screw (black)			Immediately	$ 19.25
