SELECT A DIAGRAM

01 - Cover Sheet

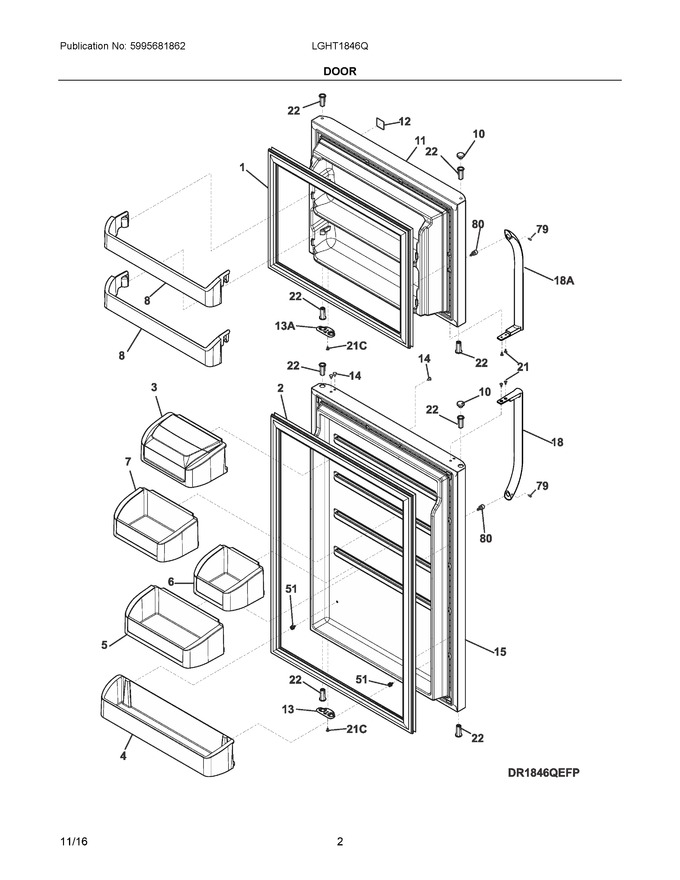

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193209		Gasket-frzr Door, Black, Magnetic			Immediately	$ 197.62
2	242193212		Gasket-refr Door, Black, Magnetic			Immediately	$ 191.86
3	242308502		Bin, Dairy, W/cover		Appelez-nous	-
4	5304498927		Bin, Door, Full Width, White, Refrigerator, Pseudo				$ 92.14
5	242308201		Bin, Door, 1/2 Width, Refrigerator, W/trim		Appelez-nous	-
6	242324201		Bin, Door, 1/3 Width, Refrigerator, W/trim		Appelez-nous	-
7	242324301		Bin, Door, 2/3 Width, Refrigerator, W/trim		Appelez-nous	-
8	5304498909		Bin, Door, Clear, Freezer, (2), Pseudo			Immediately	$ 63.29
10	240381303		Plug-button, Black, Hinge Brg Hole				$ 69.77
11	240437409		Door-frzr, Black, Complete Assy				$ 387.71
12	242015201		Label-nameplate			Immediately	$ 6.90
13	240312422		Door Stop, Black, Refr   (Replaces: 240312405)				$ 15.17
14	240494003		Plug-button, Black				$ 18.20
15	5304499329		Door-refr, Black, Complete Assy				$ 319.10
18	5303918824		Handle-door, Black, Refr-rh/frzr-lh   (Replaces: 241977505)			Immediately	$ 49.29
21	240383407		Screw, Truss Hd Quad, 10 X 16, Black   (Replaces: 240383408)				$ 12.76
22	5304507147		Bearing-hinge, Black, (8)			Immediately	$ 7.59
51	242039702		Screw, Shoulder, #10-16, (2)				$ 4.26
79	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop, Black, Frzr				$ 21.27
18A	5303918824		Handle-door, Black, Refr-lh/frzr-rh   (Replaces: 241977506)			Immediately	$ 49.29
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
NIA	241601001		Wrench, Allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
