View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

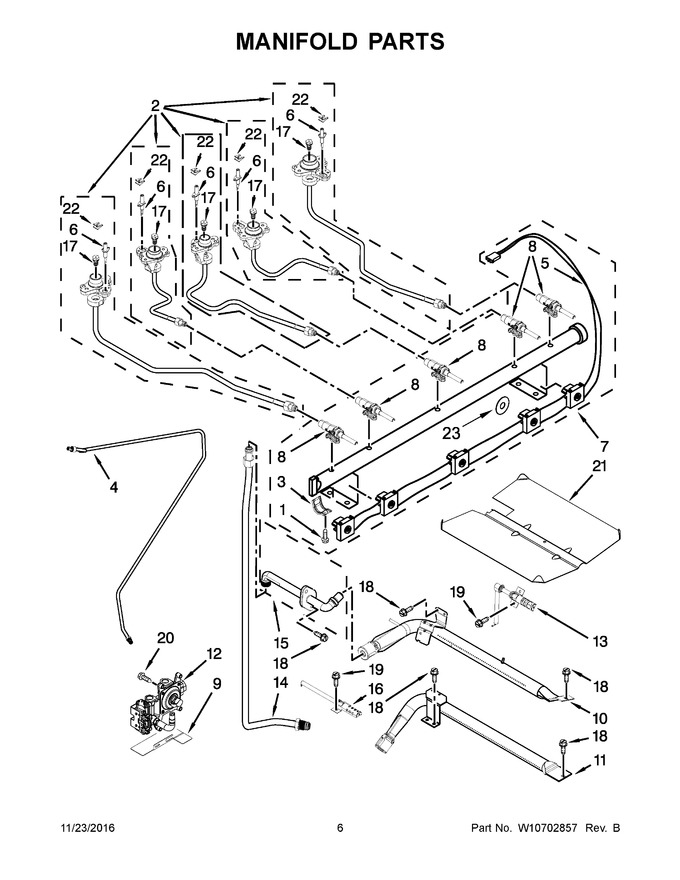

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 12.63 | ||||
| 2 | W10552126 | Assembly, Orifice |
|
$ 198.32 | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 19.50 | |||||
| 4 | W10552140 | Tube, Supply |
|
$ 71.96 | |||||
| 5 | W11677625 | Harness, Spark Switch (Replaces: W10478601) |
|
$ 66.96 | |||||
| 6 | W11220383 | Electrode (right Rear) (Replaces: W10496872) |
|
Immediately | $ 56.73 | ||||
| 7 | W10873132 | Assembly, Manifold (Replaces: W10831592) |
|
$ 292.86 | |||||
| 8 | W11163975 | Valve, Gas (left Front & Right Front) (Replaces: W10566050) |
|
Immediately | $ 169.85 | ||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 79.76 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 78.56 | ||||
| 12 | W10861656 | Valve, Regulator (Replaces: W10554066) |
|
Immediately | $ 279.10 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 93.58 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 162.70 | |||||
| 15 | W10583216 | Fitting, Broil Burner |
|
$ 82.16 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 77.23 | ||||
| 17 | W10821182 | Orifice (right Front & Right Rear) (Replaces: W10434277) |
|
Immediately | $ 80.11 | ||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.23 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 21 | 3601P336-45 | Baffle, Broil Burner |
|
$ 194.65 | |||||
| 22 | W10575401 | Clip, Spring (electrode) |
|
Immediately | $ 10.17 | ||||
| 23 | W10140571 | Seal, Switch Shaft |
|
$ 6.60 | |||||
| 17A | W11752198 | Orifice (left Rear & Center) (Replaces: W10657949) |
|
$ 28.54 | |||||
| 17B | W11690133 | Orifice (left Front) (Replaces: W10657946) |
|
Immediately | $ 30.24 | ||||
| 17C | W10657947 | Orifice (8k) (center) |
|
$ 19.20 | |||||
| 2A | W10552125 | Assembly, Orifice |
|
$ 173.61 | |||||
| 2B | W10552127 | Assembly, Orifice |
|
$ 154.85 | |||||
| 2C | W10552128 | Assembly, Orifice |
|
$ 189.67 | |||||
| 2D | W10552129 | Assembly, Orifice |
|
$ 180.04 | |||||
| 6A | W11447374 | Electrode (right Front & Center) (Replaces: W10496870) |
|
Immediately | $ 41.49 | ||||
| 6B | W11050467 | Electrode (left Rear) (Replaces: W10464799) |
|
Immediately | $ 56.73 | ||||
| 6C | W11611678 | Electrode (left Front) (Replaces: W10496874) |
|
Immediately | $ 29.68 | ||||
| 8A | W11223016 | Valve, Gas (left Rear & Center) (Replaces: W10566042) |
|
Immediately | $ 226.90 | ||||
| 8B | W11672512 | Valve, Gas (right Rear) (Replaces: W10566049) |
|
$ 87.49 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11126047 | Kit, Lp Conversion (burners) (Replaces: W10566083) |
|
Immediately | $ 108.43 | ||||
| NI | W11087486 | Kit, Lp Conversion (bake/broil) (Replaces: W10566535) |
|
Immediately | $ 101.10 |
