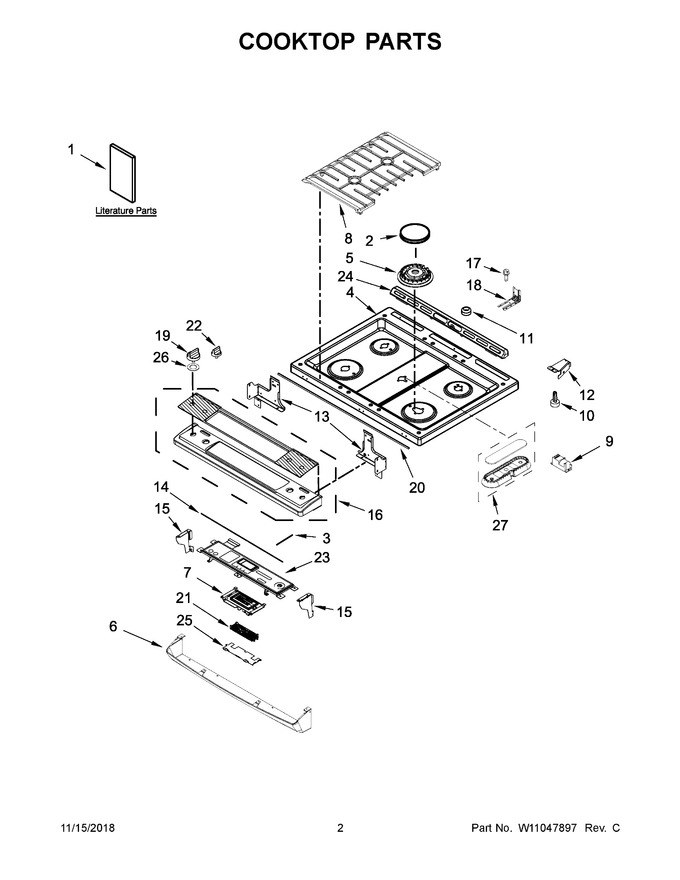

02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10665256		Instructions, Installation		Appelez-nous	-
1	W11124007		Instructions, Installation		Appelez-nous	-
2	W11161846		Kit, Burner Cap (black)   (Replaces: W10837262)			Immediately	$ 106.37
3	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 19.65
4	W11043365		Cooktop (black)   (Replaces: W10884169)				$ 464.26
5	WPW10256028		Spreader, Flame (left Front & Right Front)   (Replaces: W10256028)			Immediately	$ 123.92
6	W11218703		Panel, Lower Console (black)   (Replaces: W10570527)			Immediately	$ 139.09
7	W11122852		Assembly, Display   (Replaces: W10759327)			Immediately	$ 452.26
8	W11175813		Kit, Grate (black)   (Replaces: W10432521)				$ 312.79
9	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 161.15
10	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.09
11	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 18.83
12	W10162253		Brace, Corner (left)				$ 63.54
13	W10289170		Support, Cooktop (left)				$ 25.76
14	W10802457		Gasket, Console   (Replaces: W10689101)				$ 18.28
15	W10547960		Bracket, Console (left)				$ 19.90
16	W10680371		Assembly, Console (stainless)				$ 436.57
17	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
18	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 20.73
19	W11049637		Knob (stainless)   (Replaces: W10876615)				$ 71.99
20	W10802441		Gasket, Console/cooktop   (Replaces: W10612719)			Immediately	$ 20.46
21	W11050556		Control, Electronic   (Replaces: W10759301)			Immediately	$ 417.14
22	W11049638		Knob, Mini (stainless)   (Replaces: W10876616)				$ 71.81
23	W11049250		Assembly, Overlay (stainless)   (Replaces: W10888920)			Immediately	$ 282.45
24	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 175.55
25	W10558372		Bracket, Control				$ 21.51
26	W11131701		Bushing (black)   (Replaces: W10739036)				$ 19.94
27	W11162114		Spreader, Flame   (Replaces: W10298664)				$ 77.06
12A	W10162252		Brace, Corner (right)				$ 67.37
13A	W10289169		Support, Cooktop (right)				$ 25.76
15A	W10547961		Bracket, Console (right)				$ 19.90
15B	W10598048		Bracket, Console (center)				$ 22.05
1A	W11123989		Guide, Use & Care		Appelez-nous	-
1A	W10844285		Guide, Use & Care		Appelez-nous	-
1B	W10844271		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1D	W10400067		Guide, Quick Start (french)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1E	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1F	W10400067		Guide, Quick Start (french)		Appelez-nous	-
5A	W10836467		Spreader, Flame (left Rear)   (Replaces: W10464795)				$ 40.82
5B	WPW10256025		Spreader, Flame (right Rear & Center)   (Replaces: W10256025)			Immediately	$ 78.06
9A	W10860916		Module, Spark (0+2)   (Replaces: W10457998)			Immediately	$ 256.13
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	W10911849		Harness, Main				$ 201.01
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10580282		Harness, Main				$ 272.94
NI	W11198972		Harness, Bake/broil   (Replaces: W10754419)				$ 30.72
NI	W10580265		Harness, Bake/warm Drawer			Immediately	$ 75.46
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 48.02
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 192.83
NI	W10580229		Wire, Ground				$ 32.76
