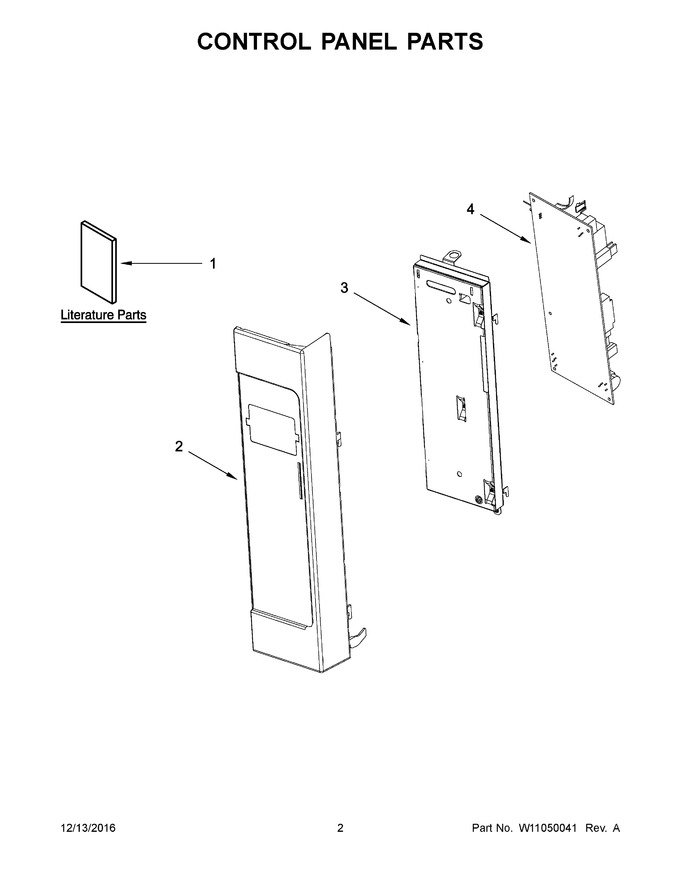

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10724870 | Installation Instructions |
|
- | |||||
| 2 | W11031956 | Assembly, Control Panel (white) |
|
- | |||||
| 3 | W10639186 | Backer, Control Panel |
|
$ 31.91 | |||||
| 4 | W10881544 | Microcomputer (Replaces: W10832048) |
|
- | |||||
| 1A | W10721269 | Use And Care Guide |
|
- | |||||
| 1B | W10666959 | Quick Reference Guide |
|
- | |||||
| 1C | W10844812 | Tech Sheet |
|
- | |||||
| 2A | W11031957 | Assembly, Control Panel (black) |
|
- | |||||
| 2B | W10871369 | Assembly, Control Panel (stainless) |
|
- |
