01 - Cover Sheet
02 - Cooktop Parts

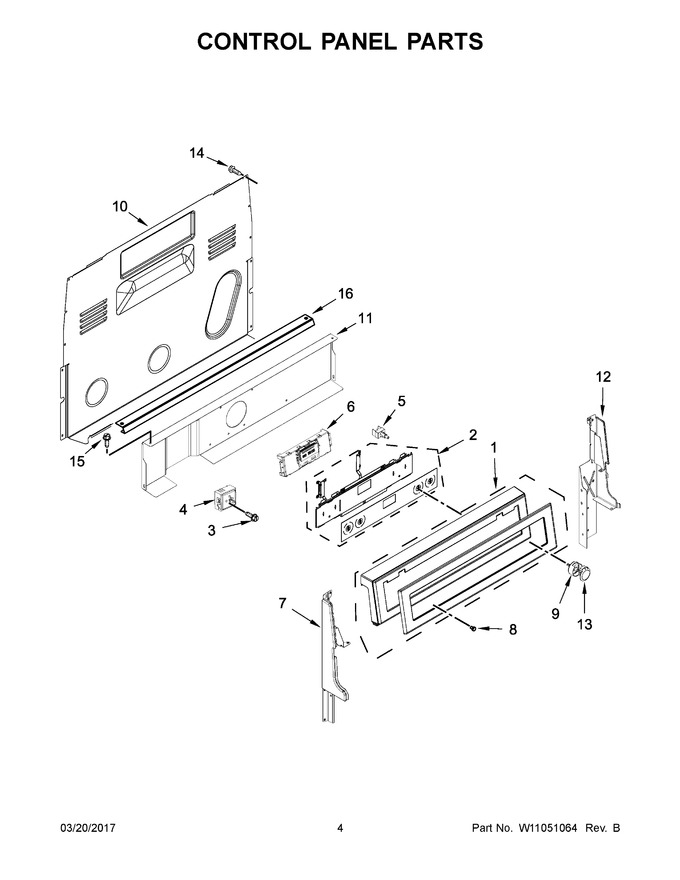

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11084228 | Console (black Stainless) (Replaces: W11024860) |
|
$ 481.70 | |||||
| 2 | W11678110 | Assembly, Active Overlay (black) (Replaces: W10692149) |
|
$ 325.41 | |||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 4 | W10857622 | Switch, Infinite (left Front & Right Front) (Replaces: W10437092) |
|
Immediately | $ 190.52 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 77.68 | ||||
| 6 | W11088877 | Control, Maxwell (Replaces: W10643263) |
|
Immediately | $ 335.26 | ||||
| 7 | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 9 | W11368920 | Bezel, Knob (Replaces: W10645811) |
|
Immediately | $ 51.90 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 12 | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 13 | W10915061 | Knob (stainless) (Replaces: W10823535) |
|
$ 67.05 | |||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 16 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 4A | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 4B | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 94.18 |
