02 - Cabinet And Component Parts

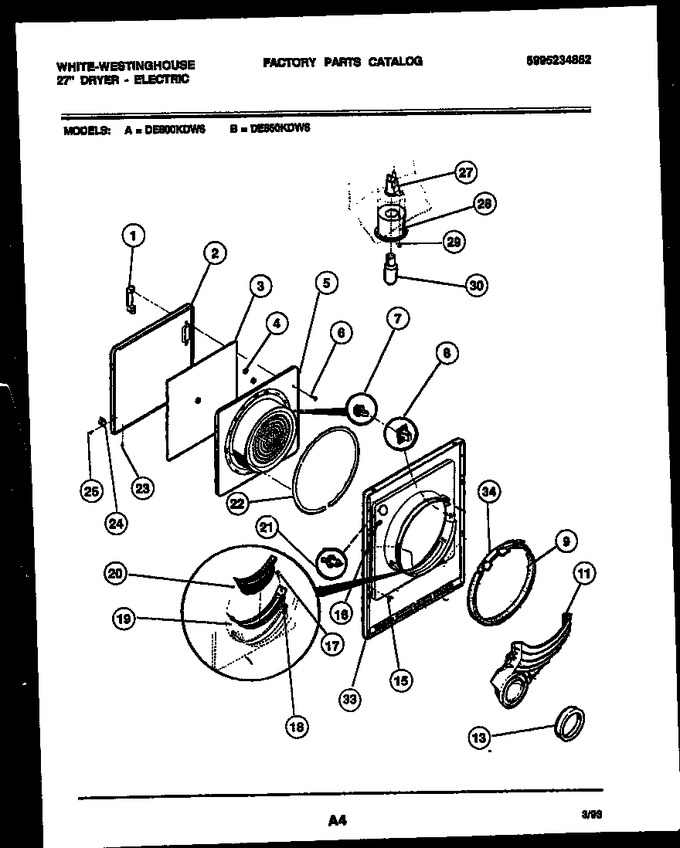

03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3281053 | Handle |
|
- | |||||
| 2 | 3201317 | Door-outer-wheat |
|
- | |||||
| 3 | 3281067 | Heat Shield |
|
- | |||||
| 4 | 3281058 | Spacer (2) |
|
- | |||||
| 4 | 3201205 | Spacer |
|
- | |||||
| 5 | 3201318 | Door-inner-wheat |
|
- | |||||
| 6 | 3281051 | Screw |
|
- | |||||
| 7 | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 8 | 3202755 | Door Catch |
|
- | |||||
| 9 | 3281049 | Seal |
|
- | |||||
| 11 | 131002500 | Air Duct |
|
- | |||||
| 13 | 134417000 | Seal (Replaces: 3281013) |
|
Immediately | $ 9.22 | ||||
| 15 | 3281074 | Clip-guide (4) |
|
- | |||||
| 16 | 3281039 | Clip (4) |
|
- | |||||
| 17 | 3281178 | Screw (2) |
|
- | |||||
| 18 | 3281102 | Clip (2) |
|
- | |||||
| 19 | 3281060 | Frame-lint Trap |
|
- | |||||
| 20 | 3281059 | Lint Trap |
|
- | |||||
| 21 | 08006623 | Door-switch |
|
- | |||||
| 22 | 3201210 | Door Gasket |
|
- | |||||
| 23 | 3281176 | Screw (2) |
|
- | |||||
| 24 | 3281050 | Door Hinge (2) |
|
- | |||||
| 25 | 3281176 | Screw (8) |
|
- | |||||
| 27 | 08015210 | Receptacle |
|
- | |||||
| 28 | 08015259 | Light Holder |
|
- | |||||
| 29 | 08001860 | Screw |
|
- | |||||
| 30 | 08027430 | Lamp |
|
- | |||||
| 33 | 131003401 | Panel-front-wheat |
|
- | |||||
| 34 | DE790 | Drum-glide (Replaces: 5303283285) |
|
Immediately | $ 40.53 |
