SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

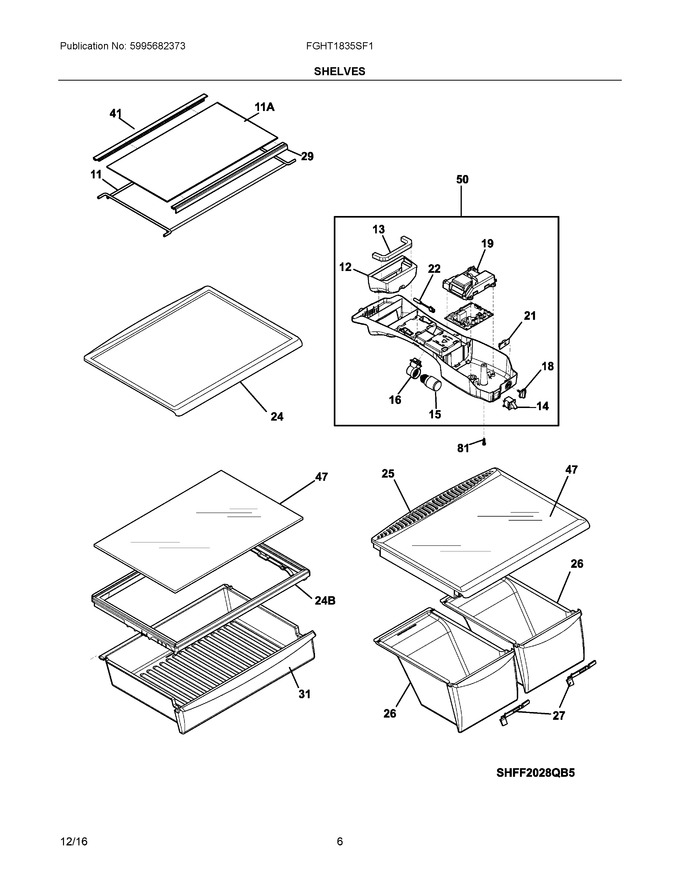

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	242087802		Frame-shelf, Full Width				$ 137.92
12	5303918717		Diffuser, Air, Control Box   (Replaces: 5304498350)			Immediately	$ 34.89
13	242240602		Gasket, Air Diffuser			Immediately	$ 11.17
14	241554901		Switch-light/lamp				$ 70.88
15	5304511738		Light Bulb, Led   (Replaces: 5304506303)			Immediately	$ 24.26
16	241559801		Socket, Light   (Replaces: 242081801)				$ 72.68
18	242217001		Knob, Cold Control				$ 226.00
19	5304498427		Housing, Board		Appelez-nous	-
21	5304501856		Board, User Interface, Potentiometer   (Replaces: 242231601)			Immediately	$ 766.96
22	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
24	240358926		Shelf-"spill-safe", Sliding   (Replaces: 240358925)			Immediately	$ 129.17
25	242201802		Cover-crisper Pan			Immediately	$ 123.10
26	242218505		Pan, Crisper, (2), W/humid Cntl				$ 147.13
27	242215902		Slide, Humidity Contrl		Appelez-nous	-
29	242110901		Trim-shelf, Front		Appelez-nous	-
31	242322201		Meat Pan, Fw Pantry, W/slide Clips				$ 266.47
41	242111001		Trim-shelf, Rear				$ 19.24
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
50	5304507800		S/a Pur-control Box & Comp, 50		Appelez-nous	-
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
11A	242087902		Glass-shelf, Full Shelf				$ 122.43
24B	242218602		Cover, Deli Pan, Full Width, W/slide   (Replaces: 242218601)			Immediately	$ 121.78
NI	240349801		Clip-slide, Pan				$ 20.48
NIA	5303299664		Spacer, Shelf				$ 24.10
NIA	5304498462		Shield, Heat				$ 20.48

    View Diagram in Separate Window       Print Part List
