SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

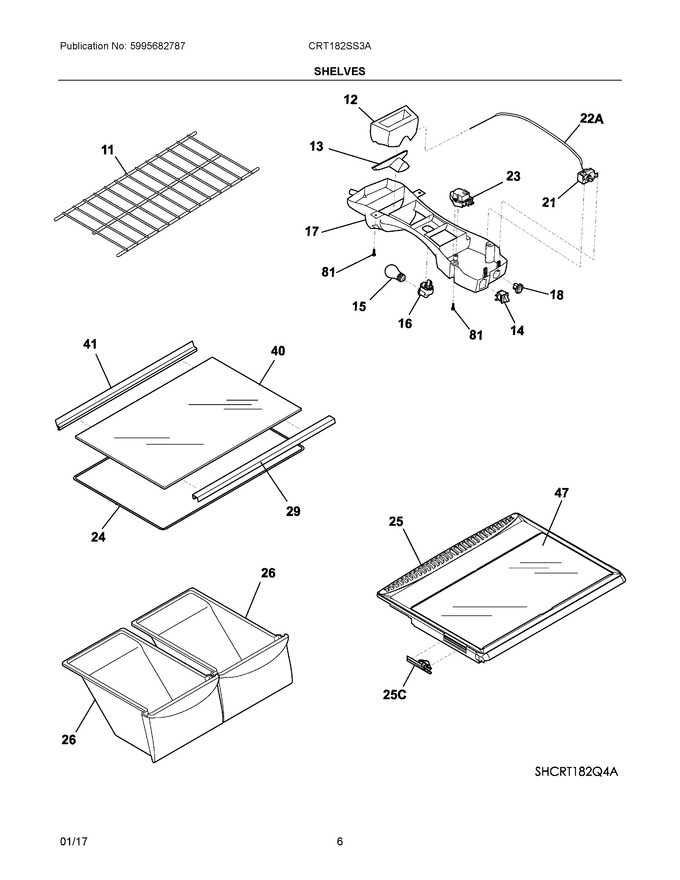

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358008		Shelf, Freezer				$ 91.80
12	241542001		Diffuser, Air, Top			Immediately	$ 74.42
13	240362601		Diffuser, Air, Bottom			Immediately	$ 41.81
14	241554901		Switch-light/lamp				$ 70.88
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	241559801		Socket-light				$ 72.68
17	5304503170		Control Box				$ 25.94
18	240360801		Knob, Temp Control				$ 43.95
21	241537103		Control-temperature			Immediately	$ 72.31
23	241705102		Timer-defrost			Immediately	$ 113.51
24	240372409		Frame, Sliding Shelf, Full Width				$ 127.08
25	240364793		Cover-crisper Pan   (Replaces: 240364786)			Immediately	$ 108.94
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 148.35
29	240357704		Trim-shelf, Front			Immediately	$ 66.25
40	240350620		Glass-shelf, 23.78" X 16.34			Immediately	$ 140.90
41	240561502		Trim-shelf, Rear			Immediately	$ 71.59
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White				$ 9.10
25C	241613502		Control-humidity, Lh				$ 47.78
NIA	241705801		Spacer-shelf				$ 7.09
NIA	240568606		Seal   (Replaces: 240568607)				$ 12.76

    View Diagram in Separate Window       Print Part List
