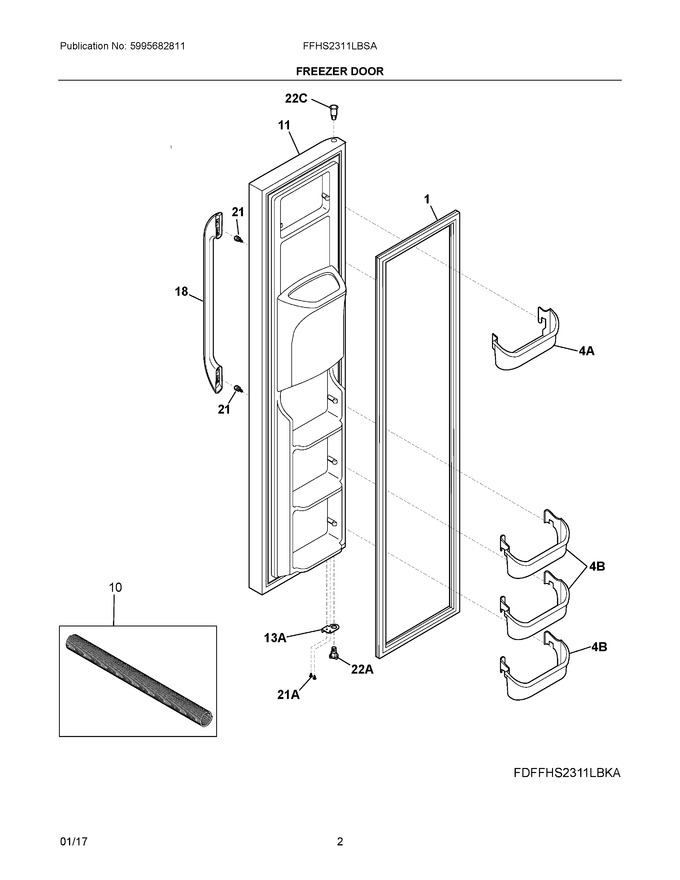

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786016 | Gasket-frzr Door, Black, Magnetic (Replaces: 241786008) |
|
$ 93.12 | |||||
| 10 | 807688301 | Spring, Water Hose, Frz Door |
|
$ 18.57 | |||||
| 11 | 242026472 | Door-frzr, Black, Complete Assy |
|
- | |||||
| 18 | 242059104 | Handle-door, Black |
|
$ 124.64 | |||||
| 21 | 241695904 | Screw |
|
$ 14.41 | |||||
| 13A | 240581906 | Door Stop, Black, Frzr |
|
$ 73.00 | |||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 242000502 | Bearing-hinge, Black, Lower |
|
$ 7.18 | |||||
| 22C | 240328404 | Bearing-hinge, Black, Upper |
|
$ 22.87 | |||||
| 4A | 240367301 | Bin-door, Frzr-upper |
|
Immediately | $ 44.68 | ||||
| 4B | 240359001 | Bin-door |
|
Immediately | $ 68.11 | ||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5304521763 | Harness-wiring, Door (Replaces: 240552101) |
|
$ 85.69 |
