SELECT A DIAGRAM
01 - Cover Sheet

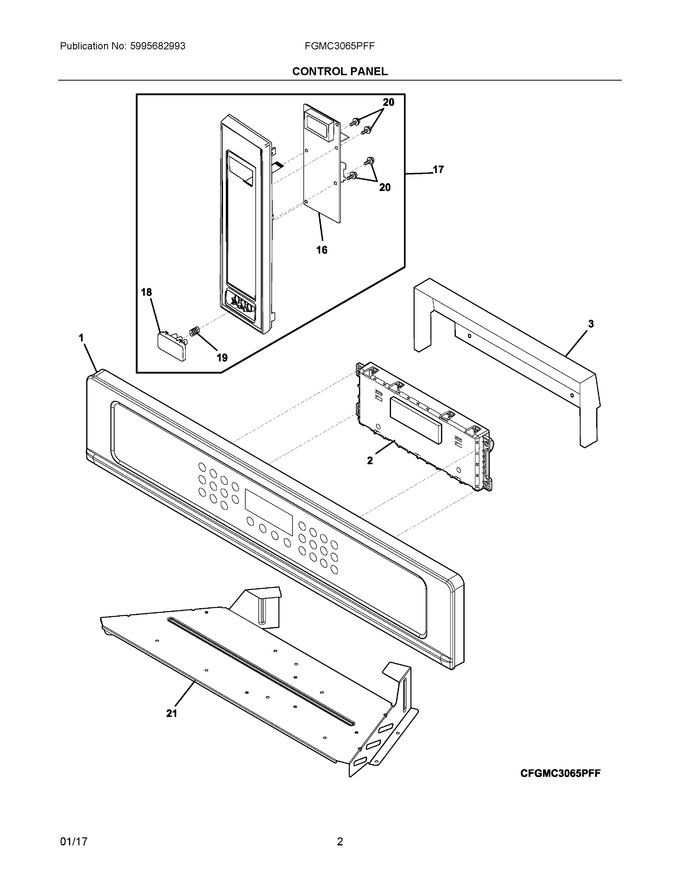

02 - Control Panel
03 - Microwave
04 - Lower Oven
05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139038825 | Control Panel Assembly, Steel/glass, Stainless/black |
|
$ 672.53 | |||||
| 2 | 5304503763 | Controller, Electronic, Es530w6 |
|
Immediately | $ 366.09 | ||||
| 3 | 807586802 | Deflector, Timer |
|
- | |||||
| 16 | 5304508429 | Control Board, Assembly, Microwave |
|
$ 246.52 | |||||
| 17 | 5304508430 | Control Panel Assembly, Complete, Stainless/black, Microwave |
|
$ 498.80 | |||||
| 18 | 5304462915 | Push Button, Door, Stainless |
|
$ 99.77 | |||||
| 19 | 5304440831 | Spring, Door Button |
|
$ 20.29 | |||||
| 20 | 5304456930 | Screw, 3 Mm X 6 Mm |
|
- | |||||
| 21 | 139028000 | Bracket, Mounting |
|
$ 63.00 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 |
