01 - Cover Sheet

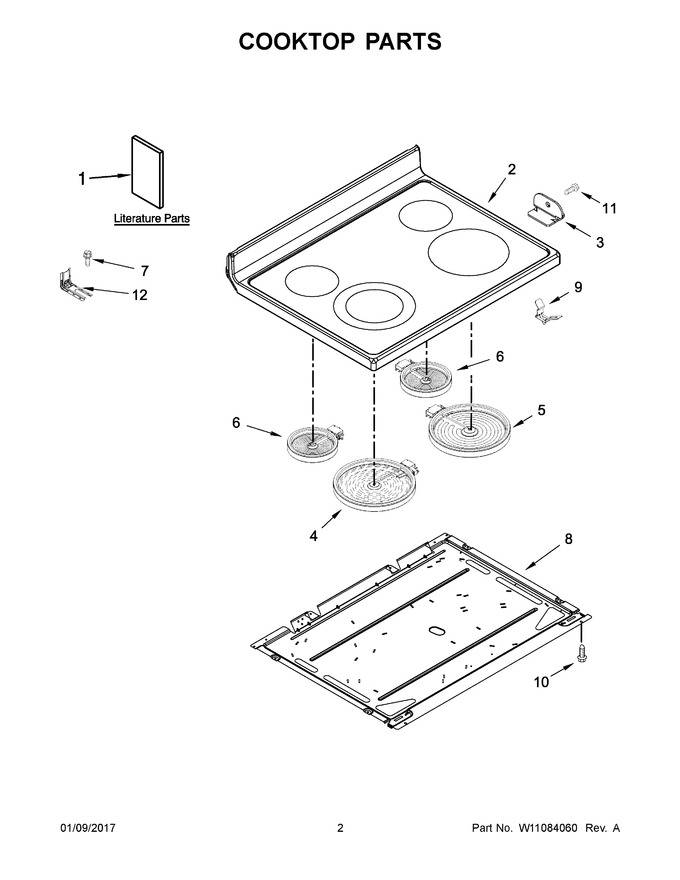

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10667171		Use And Care Guide		Appelez-nous	-
2	W10696529		Cooktop (black)   (Replaces: W10655896)				$ 449.60
3	W10607641		Bracket, Cooktop (left)				$ 28.73
4	W11517959		Element (3000w/1400w Dual) (left Front)   (Replaces: W10275048)			Immediately	$ 121.00
5	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 201.29
6	W11171119		Element (1200w) (left Rear & Right Rear)   (Replaces: 8273994)			Immediately	$ 164.01
7	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 122.99
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
12	W11447673		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.64
1A	W10403812		Instructions, Installation		Appelez-nous	-
1B	W10667168		Sheet, Tech		Appelez-nous	-
1C	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1D	W10400065		Guide, Quick Start (french)		Appelez-nous	-
1E	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1F	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W10580275		Harness, Wire (cooktop Left)				$ 137.45
NI	W11188421		Harness, Cooktop (right)   (Replaces: W10349696)			Immediately	$ 183.65
NI	W11172424		Harness, Sensor   (Replaces: W10083650)				$ 97.52
NI	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 12.62
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10884521		Harness, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
