01 - Cover Sheet

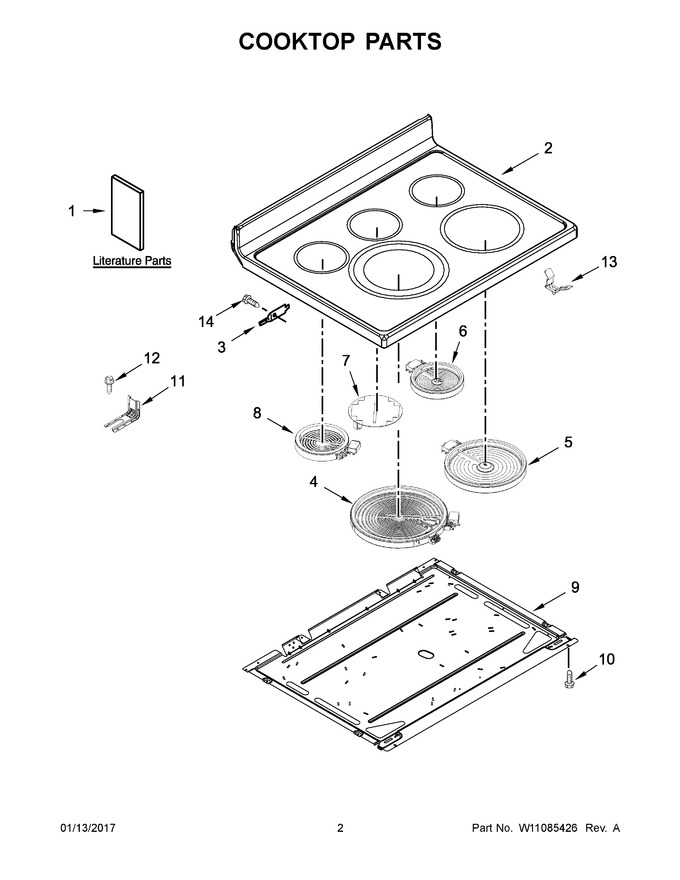

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10694009 | User And Care Guide |
|
- | |||||
| 2 | W10804319 | Cooktop (stainless) (Replaces: W10697352) |
|
Immediately | $ 798.92 | ||||
| 3 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 4 | W10823727 | Element (3000/1900w) (left Front) (Replaces: W10711900) |
|
Immediately | $ 293.68 | ||||
| 5 | W11517959 | Element (3000w/1400w Dual) (right Front) (Replaces: W10275048) |
|
Immediately | $ 121.00 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 7 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 113.96 | |||||
| 8 | WPW10342780 | Element (1300w Dual) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 9 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 122.99 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 11 | W11447673 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.64 | ||||
| 12 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 13 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 1A | W10694021 | Tech Sheet |
|
- | |||||
| 1B | W10694027 | Tech Sheet (french) |
|
- | |||||
| 1C | W10694024 | Install, Instructions |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1F | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1G | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10580285 | Harness, Main |
|
- | |||||
| NI | W10349721 | Harness, Wire (cooktop Left) |
|
$ 52.52 | |||||
| NI | W11188421 | Harness, Cooktop (right) (Replaces: W10349696) |
|
Immediately | $ 183.65 | ||||
| NI | W10324944 | Harness, Sensor |
|
$ 26.89 | |||||
| NI | W11134592 | Harness, Warm Zone (Replaces: W10174460) |
|
$ 100.51 | |||||
| NI | W10324946 | Harness, Wire (drawer) |
|
$ 24.89 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 76.28 |
